Spring Core Container 源码分析一：官方文档阅读笔记

发表于 | 更新于 | 分类于 ， ， ， | 阅读次数：

前言

通读官方文档中有关 Spring Core Container 的章节，摘录核心论点，翻译，并做重要批注；

本文为作者的原创作品，转载需注明出处；

References

http://docs.spring.io/spring/docs/current/spring-framework-reference/htmlsingle/#overview-core-container

【2.2.1】 Spring Core Container 概述

The Core Container consists of the spring-core, spring-beans, spring-context, spring-context-support, and spring-expression (Spring Expression Language) modules.

Core Container 由Spring-core, spring-beans, spring-context, spring-context-support和spring-expression几大部分组成。

The spring-core and spring-beans modules provide the fundamental parts of the framework, including the IoCand Dependency Injection features. The BeanFactory is a sophisticated implementation of the factory pattern. It removes the need for programmatic singletons and allows you to decouple the configuration and specification of dependencies from your actual program logic.

spring-core和spring-beans提供了 Spring Framework 的最基本部分，包括IoC(反转控制)和依赖注入特性。BeanFactory是一个通过工厂模式实现的一个复杂的组件，它让你不用再通过程序的方式实现单例模式，同时让配置和特定依赖之间解耦；

The Context (spring-context) module builds on the solid base provided by the Core and Beans modules: it is a means to access objects in a framework-style manner that is similar to a JNDI registry. The Context module inherits its features from the Beans module and adds support for internationalization (using, for example, resource bundles), event propagation, resource loading, and the transparent creation of contexts by, for example, a Servlet container. The Context module also supports Java EE features such as EJB, JMX, and basic remoting. The ApplicationContext interface is the focal point of the Context module. spring-context-support provides support for integrating common third-party libraries into a Spring application context for caching (EhCache, Guava, JCache), mailing (JavaMail), scheduling (CommonJ, Quartz) and template engines (FreeMarker, JasperReports, Velocity).

Context 模块是基于 Core 和 Beans 模块之上的；它使得你可以通过类似于 JNDI 注册的方式访问对象。Context 继承了 Beans 模块的特性并且添加了诸如国际化、事件模型、资源加载等。Context 模块同时支持 Java EE 的特性，比如 EJB，JMX 和基本的远程调用；ApplicationContext接口是 Context 模型的焦点，核心；spring-context-support提供了对第三方包的集成支持…

The spring-expression module provides a powerful Expression Language for querying and manipulating an object graph at runtime. It is an extension of the unified expression language (unified EL) as specified in the JSP 2.1 specification. The language supports setting and getting property values, property assignment, method invocation, accessing the content of arrays, collections and indexers, logical and arithmetic operators, named variables, and retrieval of objects by name from Spring’s IoC container. It also supports list projection and selection as well as common list aggregations.

【7.1】 Introduction to the Spring IoC container and beans

The org.springframework.beans and org.springframework.context packages are the basis for Spring Framework’s IoC container. The BeanFactory interface provides an advanced configuration mechanism capable of managing any type of object. ApplicationContext is a sub-interface of BeanFactory. It adds easier integration with Spring’s AOP features; message resource handling (for use in internationalization), event publication; and application-layer specific contexts such as the WebApplicationContext for use in web applications.

org.springframework.beans和org.springframework.context两个包是 Spring IoC 容器中最核心的两个包；BeanFactory接口提供了先进的配置机制使得它有能力管理任何类型的对象；ApplicationContext是BeanFactory接口的子接口，它能够非常容易的和 Spring AOP、message resource handling、event publication 以及应用于 web 应用的WebApplicatonContext等特性进行整合。

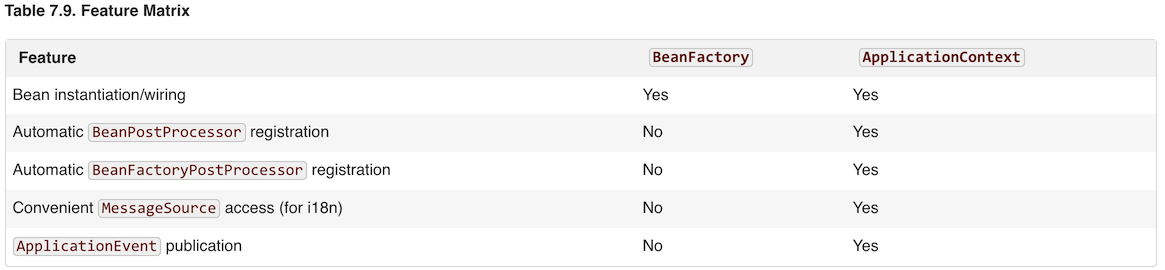

In short, the BeanFactory provides the configuration framework and basic functionality, and the ApplicationContext adds more enterprise-specific functionality. The ApplicationContext is a complete superset of the BeanFactory, and is used exclusively in this chapter in descriptions of Spring’s IoC container. For more information on using the BeanFactory instead of the ApplicationContext, refer to Section 7.16, “The BeanFactory”.

简而言之，BeanFactory提供了可配置的架构以及基础的功能，而ApplicationContext加入了更多的企业功能的特性。ApplicationContext是BeanFactory的一个超集，它只被 Spring IoC 容器所使用。在使用过程中，可以使用BeanFactory来替代ApplicationContext，参考 Section 7.16，”The BeanFactory”，(备注：在一些资源有限的环境当中，可以使用BeanFactory来替代ApplicationContext。)

【7.2】 Container Overview

【7.2.1】 Coniguration metadata

  • Annotation-based configuration: Spring 2.5 introduced support for annotation-based configuration metadata.
  • Java-based configuration: Starting with Spring 3.0, many features provided by the Spring JavaConfig project became part of the core Spring Framework. Thus you can define beans external to your application classes by using Java rather than XML files. To use these new features, see the @Configuration, @Bean, @Import and @DependsOn annotations.

However, you can use Spring’s integration with AspectJ to configure objects that have been created outside the control of an IoC container. See Using AspectJ to dependency-inject domain objects with Spring.

【7.2.2】Instantiating a container

Instantiating a Spring IoC container is straightforward. 通过如下的方式初始化得到一个ApplicationContext即可

1
2
ApplicationContext context =
    new ClassPathXmlApplicationContext(new String[] {"services.xml", "daos.xml"});

举了一个例子，

service.xml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.springframework.org/schema/beans
        http://www.springframework.org/schema/beans/spring-beans.xsd">

    <!-- services -->

    <bean id="petStore" class="org.springframework.samples.jpetstore.services.PetStoreServiceImpl">
        <property name="accountDao" ref="accountDao"/>
        <property name="itemDao" ref="itemDao"/>
        <!-- additional collaborators and configuration for this bean go here -->
    </bean>

    <!-- more bean definitions for services go here -->

</beans>

daos.xml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.springframework.org/schema/beans
        http://www.springframework.org/schema/beans/spring-beans.xsd">

    <bean id="accountDao"
        class="org.springframework.samples.jpetstore.dao.jpa.JpaAccountDao">
        <!-- additional collaborators and configuration for this bean go here -->
    </bean>

    <bean id="itemDao" class="org.springframework.samples.jpetstore.dao.jpa.JpaItemDao">
        <!-- additional collaborators and configuration for this bean go here -->
    </bean>

    <!-- more bean definitions for data access objects go here -->

</beans>
Composing XML-based configuration metadata

通过 to load bean definitions from another file or files. For example:

1
2
3
4
5
6
7
8
<beans>
    <import resource="services.xml"/>
    <import resource="resources/messageSource.xml"/>
    <import resource="/resources/themeSource.xml"/>

    <bean id="bean1" class="..."/>
    <bean id="bean2" class="..."/>
</beans>
The Groovy Bean Definition DSL

Typically, such configuration will live in a “.groovy” file with a structure as follows:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
beans {
    dataSource(BasicDataSource) {
        driverClassName = "org.hsqldb.jdbcDriver"
        url = "jdbc:hsqldb:mem:grailsDB"
        username = "sa"
        password = ""
        settings = [mynew:"setting"]
    }
    sessionFactory(SessionFactory) {
        dataSource = dataSource
    }
    myService(MyService) {
        nestedBean = { AnotherBean bean ->
            dataSource = dataSource
        }
    }
}

【7.2.3】Using the container

The ApplicationContext is the interface for an advanced factory capable of maintaining a registry of different beans and their dependencies.

The ApplicationContext enables you to read bean definitions and access them as follows:

1
2
3
4
5
6
7
8
// create and configure beans
ApplicationContext context = new ClassPathXmlApplicationContext("services.xml", "daos.xml");

// retrieve configured instance
PetStoreService service = context.getBean("petStore", PetStoreService.class);

// use configured instance
List<String> userList = service.getUsernameList();

【7.3】 Bean overview

beans 的元数据 metadata:

  • A package-qualified class name: typically the actual implementation class of the bean being defined.
  • Bean behavioral configuration elements, which state how the bean should behave in the container (scope, lifecycle callbacks, and so forth).
  • References to other beans that are needed for the bean to do its work; these references are also called collaborators or dependencies.
  • Other configuration settings to set in the newly created object, for example, the number of connections to use in a bean that manages a connection pool, or the size limit of the pool.

bean 的属性有

Property Explained in…​
class Section 7.3.2, “Instantiating beans”
name Section 7.3.1, “Naming beans”
scope Section 7.5, “Bean scopes”
constructor arguments Section 7.4.1, “Dependency Injection”
properties Section 7.4.1, “Dependency Injection”
autowiring mode Section 7.4.5, “Autowiring collaborators”
lazy-initialization mode Section 7.4.4, “Lazy-initialized beans”
initialization method the section called “Initialization callbacks”
destruction method the section called “Destruction callbacks”

This is done by accessing the ApplicationContext’s BeanFactory via the method getBeanFactory() which returns the BeanFactory implementation DefaultListableBeanFactory. DefaultListableBeanFactory supports this registration through the methods registerSingleton(..) and registerBeanDefinition(..).

可以通过 DefaultListableBeanFactory.registerSingleton(..)或者 DefaultListableBeanFactory.registerBeanDefinition(..)注册新的bean

【7.4】 Dependencies

【7.4.1】 Dependency Injection

Dependency injection (DI) is a process whereby objects define their dependencies, that is, the other objects they work with, only through constructor arguments, arguments to a factory method, or properties that are set on the object instance after it is constructed or returned from a factory method. The container then injects those dependencies when it creates the bean. This process is fundamentally the inverse, hence the name Inversion of Control (IoC), of the bean itself controlling the instantiation or location of its dependencies on its own by using direct construction of classes, or the Service Locator pattern.

依赖注入是在某个对象实例被初始化或者从一个工厂方法被构造返回以后，再通过构造参数，工厂方法参数或者 set 方法的参数就可以设置该对象的依赖的一种 process (过程)；然后是由容器将这些依赖注入到对象中的；这个过程就是反转(全名是 反转控制(IOC)) 一个 bean 靠自己通过构造方法或 Service Locator 的方式有自己去控制如何定位依赖关系，如何进行实例化的方式。

Ok，上面的语言过于官方，言外之意，以前在编写程序的时候，某个 bean 要引用某个实例，必须由 bean 自己去控制，定位这个实例的 class，然后由 bean 自己去实例化这个被引用的实例；这样做带来最大的问题就是扩展，因为被引用的实例是在该 bean 中写死的，如果将来需要替换这个引用，必须重写代码。

上述就是依赖注入的核心了。

DI exists in two major variants, Constructor-based dependency injection and Setter-based dependency injection.

Dependency resolution process

该章节主要讲解依赖是如何被解析的。

The Spring container validates the configuration of each bean as the container is created. However, the bean properties themselves are not set until the bean is actually created. Beans that are singleton-scoped and set to be pre-instantiated (the default) are created when the container is created. Scopes are defined in Section 7.5, “Bean scopes”. Otherwise, the bean is created only when it is requested. Creation of a bean potentially causes a graph of beans to be created, as the bean’s dependencies and its dependencies’ dependencies (and so on) are created and assigned. Note that resolution mismatches among those dependencies may show up late, i.e. on first creation of the affected bean.

这段话主要讲解了几点

  1. 属性的设置是在 bean 创建以后；
  2. 当 bean 被设置为单例模式(singleton-scoped) 以及被设置为”预先加载”，那么一旦容器启动就会立即初始化 beans；如果不是，则会延迟到当使用到这个 bean 以后才会开始进行初始化并且进行加载。
  3. 初始化一个 bean 往往会导致一系列的其依赖的 bean 进行创建，就像一幅相互依赖的图；
  4. 要注意的是，当解析一个 bean 的时候，也许会因为去解析并加载它的依赖的时候会出现问题，所以，推荐不要使用延迟加载的方式。

Circular dependencies

If you use predominantly constructor injection, it is possible to create an unresolvable circular dependency scenario.

For example: Class A requires an instance of class B through constructor injection, and class B requires an instance of class A through constructor injection. If you configure beans for classes A and B to be injected into each other, the Spring IoC container detects this circular reference at runtime, and throws a BeanCurrentlyInCreationException.

One possible solution is to edit the source code of some classes to be configured by setters rather than constructors. Alternatively, avoid constructor injection and use setter injection only. In other words, although it is not recommended, you can configure circular dependencies with setter injection.

Unlike the typical case (with no circular dependencies), a circular dependency between bean A and bean B forces one of the beans to be injected into the other prior to being fully initialized itself (a classic chicken/egg scenario).

这段主要讲解了循环依赖解析出错的可能，但问题只会出在构造函数的循环依赖中，如果构造 bean A 的时候需要初始化它的依赖 bean B，而构造 bean B 的时候需要依赖初始化 Bean A，那么在构造 Bean A 和 Bean B 的过程中形成了循环依赖而最终导致谁也初始化不了，容器最终会抛出 BeanCurrentlyInCreationException的错误。而解决这种循环依赖的错误，办法就是使用 setter 注入依赖的方式来替换构造方法进行依赖注入的方式。

本章节后面描述的内容主要是说了一些注意事项，尽量使用单例模式，尽量使用 pre-installed 模式，而非懒加载模式，尽量让问题能够提早的暴露出来。

Examples of dependency injection
Dependencies and configuration in detail
Straight values (primitives, Strings, and so on)
1
2
3
4
5
6
7
<bean id="myDataSource" class="org.apache.commons.dbcp.BasicDataSource" destroy-method="close">
    <!-- results in a setDriverClassName(String) call -->
    <property name="driverClassName" value="com.mysql.jdbc.Driver"/>
    <property name="url" value="jdbc:mysql://localhost:3306/mydb"/>
    <property name="username" value="root"/>
    <property name="password" value="masterkaoli"/>
</bean>

可以使用 p-namespace 来进行简化配置

1
2
3
4
5
6
7
8
9
10
11
12
13
14
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:p="http://www.springframework.org/schema/p"
    xsi:schemaLocation="http://www.springframework.org/schema/beans
    http://www.springframework.org/schema/beans/spring-beans.xsd">

    <bean id="myDataSource" class="org.apache.commons.dbcp.BasicDataSource"
        destroy-method="close"
        p:driverClassName="com.mysql.jdbc.Driver"
        p:url="jdbc:mysql://localhost:3306/mydb"
        p:username="root"
        p:password="masterkaoli"/>

</beans>
Inner Beans

A <bean/> element inside the <property/> or <constructor-arg/> elements defines a so-called inner bean.

1
2
3
4
5
6
7
8
9
<bean id="outer" class="...">
    <!-- instead of using a reference to a target bean, simply define the target bean inline -->
    <property name="target">
        <bean class="com.example.Person"> <!-- this is the inner bean -->
            <property name="name" value="Fiona Apple"/>
            <property name="age" value="25"/>
        </bean>
    </property>
</bean>
Collections

<list/>, <set/>, <map/>, and <props/>

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
<bean id="moreComplexObject" class="example.ComplexObject">
    <!-- results in a setAdminEmails(java.util.Properties) call -->
    <property name="adminEmails">
        <props>
            <prop key="administrator">administrator@example.org</prop>
            <prop key="support">support@example.org</prop>
            <prop key="development">development@example.org</prop>
        </props>
    </property>
    <!-- results in a setSomeList(java.util.List) call -->
    <property name="someList">
        <list>
            <value>a list element followed by a reference</value>
            <ref bean="myDataSource" />
        </list>
    </property>
    <!-- results in a setSomeMap(java.util.Map) call -->
    <property name="someMap">
        <map>
            <entry key="an entry" value="just some string"/>
            <entry key ="a ref" value-ref="myDataSource"/>
        </map>
    </property>
    <!-- results in a setSomeSet(java.util.Set) call -->
    <property name="someSet">
        <set>
            <value>just some string</value>
            <ref bean="myDataSource" />
        </set>
    </property>
</bean>
Collections merging

The Spring container also supports the merging of collections. An application developer can define a parent-style , , or element, and have child-style , , or elements inherit and override values from the parent collection. That is, the child collection’s values are the result of merging the elements of the parent and child collections, with the child’s collection elements overriding values specified in the parent collection.

子类定义的 Collections 可以扩展或父类的 Collections 定义，相同的则覆盖

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
<beans>
    <bean id="parent" abstract="true" class="example.ComplexObject">
        <property name="adminEmails">
            <props>
                <prop key="administrator">administrator@example.com</prop>
                <prop key="support">support@example.com</prop>
            </props>
        </property>
    </bean>
    <bean id="child" parent="parent">
        <property name="adminEmails">
            <!-- the merge is specified on the child collection definition -->
            <props merge="true">
                <prop key="sales">sales@example.com</prop>
                <prop key="support">support@example.co.uk</prop>
            </props>
        </property>
    </bean>
<beans>

Notice the use of the merge=true attribute on the element of the adminEmails property of the child bean definition. When the child bean is resolved and instantiated by the container, the resulting instance has an adminEmails Properties collection that contains the result of the merging of the child’s adminEmails collection with the parent’s adminEmails collection.

1
2
3
administrator=administrator@example.com
sales=sales@example.com
support=support@example.co.uk

support 属性被子类覆盖了，然后子类新增了一个 sales 的邮箱地址。

Strongly-typed collection
1
2
3
4
5
6
7
8
public class Foo {

    private Map<String, Float> accounts;

    public void setAccounts(Map<String, Float> accounts) {
        this.accounts = accounts;
    }
}
1
2
3
4
5
6
7
8
9
10
11
<beans>
    <bean id="foo" class="x.y.Foo">
        <property name="accounts">
            <map>
                <entry key="one" value="9.99"/>
                <entry key="two" value="2.75"/>
                <entry key="six" value="3.99"/>
            </map>
        </property>
    </bean>
</beans>

当 Foo 的属性 accounts 准备要注入的时候，Spring 容器会使用 strong-typed Map<String, Float>对配置的值进行反射注入，如果类型出错，比如不是 Float 类型，则会报错。

Null and empty string values
1
2
3
<bean class="ExampleBean">
    <property name="email" value=""/>
</bean>

等价于

1
exampleBean.setEmail("");
1
2
3
4
5
<bean class="ExampleBean">
    <property name="email">
        <null/>
    </property>
</bean>

等价于

1
exampleBean.setEmail(null)
XML shortcut with the p-namespace

The p-namespace enables you to use the bean element’s attributes, instead of nested elements, to describe your property values and/or collaborating beans.

Spring supports extensible configuration formats with namespaces, which are based on an XML Schema definition.

例子一、

1
2
3
4
5
6
7
8
9
10
11
12
13
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:p="http://www.springframework.org/schema/p"
    xsi:schemaLocation="http://www.springframework.org/schema/beans
        http://www.springframework.org/schema/beans/spring-beans.xsd">
    <!-- 传统的方式 -->
    <bean name="classic" class="com.example.ExampleBean">
        <property name="email" value="foo@bar.com"/>
    </bean>
    <!-- 使用 p-namespace 的方式 -->
    <bean name="p-namespace" class="com.example.ExampleBean"
        p:email="foo@bar.com"/>
</beans>

例子二、

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:p="http://www.springframework.org/schema/p"
    xsi:schemaLocation="http://www.springframework.org/schema/beans
        http://www.springframework.org/schema/beans/spring-beans.xsd">
    <!-- 传统的方式 -->
    <bean name="john-classic" class="com.example.Person">
        <property name="name" value="John Doe"/>
        <property name="spouse" ref="jane"/>
    </bean>
    <!-- 使用 p-namespace 的方式 -->
    <bean name="john-modern"
        class="com.example.Person"
        p:name="John Doe"
        p:spouse-ref="jane"/>

    <bean name="jane" class="com.example.Person">
        <property name="name" value="Jane Doe"/>
    </bean>
</beans>

XML shortcut with the c-namespace

c-namespace, newly introduced in Spring 3.1, allows usage of inlined attributes for configuring the constructor arguments rather then nested constructor-arg elements.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:c="http://www.springframework.org/schema/c"
    xsi:schemaLocation="http://www.springframework.org/schema/beans
        http://www.springframework.org/schema/beans/spring-beans.xsd">

    <bean id="bar" class="x.y.Bar"/>
    <bean id="baz" class="x.y.Baz"/>

    <!-- traditional declaration -->
    <bean id="foo" class="x.y.Foo">
        <constructor-arg ref="bar"/>
        <constructor-arg ref="baz"/>
        <constructor-arg value="foo@bar.com"/>
    </bean>

    <!-- c-namespace declaration -->
    <bean id="foo" class="x.y.Foo" c:bar-ref="bar" c:baz-ref="baz" c:email="foo@bar.com"/>

</beans>
Compound property names

You can use compound or nested property names when you set bean properties, as long as all components of the path except the final property name are not null. Consider the following bean definition.

1
2
3
<bean id="foo" class="foo.Bar">
    <property name="fred.bob.sammy" value="123" />
</bean>

The foo bean has a fred property, which has a bob property, which has a sammy property, and that final sammy property is being set to the value 123

【7.4.3】 Using depends-on

If a bean is a dependency of another that usually means that one bean is set as a property of another. Typically you accomplish this with the <ref/> element in XML-based configuration metadata. However, sometimes dependencies between beans are less direct; for example, a static initializer in a class needs to be triggered, such as database driver registration. The depends-on attribute can explicitly force one or more beans to be initialized before the bean using this element is initialized. The following example uses the depends-on attribute to express a dependency on a single bean:

通常来说，依赖关系会通过<ref/>完成解析，但是，有些时候并不能直接使用这种方式；比如，想数据库驱动的注册，需要通过一个静态构造器首先初始化该数据库驱动，而不能直接通过<ref/>完成；这个时候，我们就需要使用depends-on在使用到它之前将它进行初始化。

1
2
<bean id="beanOne" class="ExampleBean" depends-on="manager"/>
<bean id="manager" class="ManagerBean" />
1
2
3
4
5
6
<bean id="beanOne" class="ExampleBean" depends-on="manager,accountDao">
    <property name="manager" ref="manager" />
</bean>

<bean id="manager" class="ManagerBean" />
<bean id="accountDao" class="x.y.jdbc.JdbcAccountDao" />

【7.4.4】 Lazy-initialized beans

1
2
<bean id="lazy" class="com.foo.ExpensiveToCreateBean" lazy-init="true"/>
<bean name="not.lazy" class="com.foo.AnotherBean"/>

【7.4.5】 Autowiring collaborators

【7.4.6】 Method injection

In most application scenarios, most beans in the container are singletons. When a singleton bean needs to collaborate with another singleton bean, or a non-singleton bean needs to collaborate with another non-singleton bean, you typically handle the dependency by defining one bean as a property of the other. A problem arises when the bean lifecycles are different. Suppose singleton bean A needs to use non-singleton (prototype) bean B, perhaps on each method invocation on A. The container only creates the singleton bean A once, and thus only gets one opportunity to set the properties. The container cannot provide bean A with a new instance of bean B every time one is needed.

开篇则从一个矛盾出发，大多数依赖关系是建立在单例依赖单例的方式上，或者一个 non-singleton bean 依赖于另外一个 non-singleton bean 之上；但是，我们会有这样一种需求，既是一个 singleton bean A 依赖于 non-singleton bean B，而我们期望的是，每次通过 getter 方法去获取 non-singleton bean B 的时候，都是能够得到一个新构建的 B；但是因为，A 是单例的，所以 B 往往只能被容器初始化一次；那么这个时候，我们该怎么办呢？

A solution is to forego some inversion of control. You can make bean A aware of the container by implementing the ApplicationContextAware interface, and by making a getBean(“B”) call to the container ask for (a typically new) bean B instance every time bean A needs it. The following is an example of this approach:

一个解决办法就是暂时忘掉反转控制，你可以通过ApplicationContextAware接口创建一个能够感知 container 的 bean A，然后当每一次 A 需要 B 的时候通过 container 去创建一个新的 B，如同下面这例子这样，

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
// Spring-API imports
import org.springframework.beans.BeansException;
import org.springframework.context.ApplicationContext;
import org.springframework.context.ApplicationContextAware;

public class CommandManager implements ApplicationContextAware {

    private ApplicationContext applicationContext;

    public Object process(Map commandState) {
        // grab a new instance of the appropriate Command
        Command command = createCommand();
        // set the state on the (hopefully brand new) Command instance
        command.setState(commandState);
        return command.execute();
    }

    protected Command createCommand() {
        // notice the Spring API dependency!
        return this.applicationContext.getBean("command", Command.class);
    }

    public void setApplicationContext(
            ApplicationContext applicationContext) throws BeansException {
        this.applicationContext = applicationContext;
    }
}

解读，CommandManager 就是我们的 Bean A，通过实现 ApplicationContextAware 接口可以获得 ApplicationContext，这样，我们就可以非常方便的通过 ApplicationContext 既 Spring 容器获取 B，且每次 B 都是一个新的 bean。

The preceding is not desirable, because the business code is aware of and coupled to the Spring Framework. Method Injection, a somewhat advanced feature of the Spring IoC container, allows this use case to be handled in a clean fashion.

但是这种方式并不是可取的方式，因为业务代码和 Spring Framework 冗余在了一起。Method Injection，是 Spring Container 的一种更高级的属性，可以使用一种简洁的方式来处理这种情况。

( 备注，当你使用 @Service、@Component 等注解的方式来管理 bean 的时候，ApplicationContext 是由 Spring 容器自动控制的，如果你需要使用到 ApplicationContext 的时候，可以使用上述 ApplicationContextAware 接口的方式。)

也就导出了为什么我们需要 Method Injection

Lookup method injection

Lookup method injection is the ability of the container to override methods on container managed beans, to return the lookup result for another named bean in the container. The lookup typically involves a prototype bean( 就是 non-singleton bean ) as in the scenario described in the preceding section. The Spring Framework implements this method injection by using bytecode generation from the CGLIB library to generate dynamically a subclass that overrides the method.

Lookup method injection 提供了这样一种能力可以覆盖容器实例中的方法，使这些方法从容器中能够返回另外一个 named bean；而这个返回的 bean 通常是一个 non-singleton bean；Spring 是通过使用 CGLIB 字节码技术，动态的生成一个子类注入。使用这种方式需要注意的几点

  • 因为需要动态的生成子类，所以父类不能使用 final
  • Unit-testing 的时候需要你根据 abstract 方法模拟实现一个 mock 方法，stub implementation

改造Method injection中所提到的例子，

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
// no more Spring imports!

public abstract class CommandManager {

    public Object process(Object commandState) {
        // grab a new instance of the appropriate Command interface
        Command command = createCommand();
        // set the state on the (hopefully brand new) Command instance
        command.setState(commandState);
        return command.execute();
    }

    // okay... but where is the implementation of this method?
    protected abstract Command createCommand();
}

abstract 方法的实现在什么地方呢？

If the method is abstract, the dynamically-generated subclass implements the method. Otherwise, the dynamically-generated subclass overrides the concrete method defined in the original class.

这里解释了如何通过 CGLIB 实现的，如果方法是abstract的，将会动态生成一个实现了该抽象方法的子类；如果不是abstract的，动态生成的子类将会覆盖该 concrete 方法；也就是说，当你使用 lookup-method 以后，容器使用的不再是CommandManager，而是一个有关其动态生成的子类。

For example:

1
2
3
4
5
6
7
8
9
<!-- a stateful bean deployed as a prototype (non-singleton) -->
<bean id="myCommand" class="fiona.apple.AsyncCommand" scope="prototype">
    <!-- inject dependencies here as required -->
</bean>

<!-- commandProcessor uses statefulCommandHelper -->
<bean id="commandManager" class="fiona.apple.CommandManager">
    <lookup-method name="createCommand" bean="myCommand"/>
</bean>

The bean identified as commandManager calls its own method createCommand() whenever it needs a new instance of the myCommand bean. You must be careful to deploy the myCommand bean as a prototype, if that is actually what is needed. If it is as a singleton, the same instance of the myCommand bean is returned each time.

使用的时候，注意要将 myCommand bean 设置为 prototype 既 non-singleton。

如果使用的是 annotation-based component model,

1
2
3
4
5
6
7
8
9
10
11
public abstract class CommandManager {

    public Object process(Object commandState) {
        Command command = createCommand();
        command.setState(commandState);
        return command.execute();
    }

    @Lookup("myCommand")
    protected abstract Command createCommand();
}

【7.5】 Bean Scopes

Spring Framework supports seven scopes, five of which are available only if you use a web-aware ApplicationContext.

The following scopes are supported out of the box. You can also create a custom scope.

Scope Description
singleton
prototype
request
session
globalSession
application
websocket

As of Spring 3.0, a thread scope is available, but is not registered by default. For more information, see the documentation for SimpleThreadScope.

【7.5.1】The singleton scope

The GoF Singleton hard-codes the scope of an object such that one and only one instance of a particular class is created per ClassLoader. The scope of the Spring singleton is best described as per container and per bean.

通常意义上的单例模式是针对 ClassLoader 的，既是一个 ClassLoader 一个单例，而 Spring 是一个单例一个 Spring 容器的。

【7.5.2】The prototype scope

The non-singleton, prototype scope of bean deployment results in the creation of a new bean instance every time a request for that specific bean is made.

That is, the bean is injected into another bean or you request it through a getBean() method call on the container.

As a rule, use the prototype scope for all stateful beans and the singleton scope for stateless beans.

规则，prototype用来表示状态 bean…

【7.5.3】Singleton beans with prototype-bean dependencies

If you need a new instance of a prototype bean at runtime more than once, see Section 7.4.6, “Method injection”

【7.5.4】Request, session, global session, application, and WebSocket scopes

The request, session, globalSession, application, and websocket scopes are only available if you use a web-aware Spring ApplicationContext implementation (such as XmlWebApplicationContext). If you use these scopes with regular Spring IoC containers such as the ClassPathXmlApplicationContext, an IllegalStateException will be thrown complaining about an unknown bean scope.

Initial web configuration

To support the scoping of beans at the request, session, globalSession, application, and websocket levels (web-scoped beans), some minor initial configuration is required before you define your beans. (This initial setup is not required for the standard scopes, singleton and prototype.)

If you access scoped beans within Spring Web MVC, in effect, within a request that is processed by the Spring DispatcherServlet or DispatcherPortlet, then no special setup is necessary: DispatcherServlet and DispatcherPortlet already expose all relevant state.

If you use a Servlet 2.5 web container, with requests processed outside of Spring’s DispatcherServlet (for example, when using JSF or Struts), you need to register the org.springframework.web.context.request.RequestContextListener ServletRequestListener. For Servlet 3.0+, this can be done programmatically via the WebApplicationInitializer interface. Alternatively, or for older containers, add the following declaration to your web application’s web.xml file:

1
2
3
4
5
6
7
8
9
<web-app>
    ...
    <listener>
        <listener-class>
            org.springframework.web.context.request.RequestContextListener
        </listener-class>
    </listener>
    ...
</web-app>

Alternatively, if there are issues with your listener setup, consider using Spring’s RequestContextFilter. The filter mapping depends on the surrounding web application configuration, so you have to change it as appropriate.

1
2
3
4
5
6
7
8
9
10
11
12
<web-app>
    ...
    <filter>
        <filter-name>requestContextFilter</filter-name>
        <filter-class>org.springframework.web.filter.RequestContextFilter</filter-class>
    </filter>
    <filter-mapping>
        <filter-name>requestContextFilter</filter-name>
        <url-pattern>/*</url-pattern>
    </filter-mapping>
    ...
</web-app>

DispatcherServlet, RequestContextListener, and RequestContextFilter all do exactly the same thing, namely bind the HTTP request object to the Thread that is servicing that request. This makes beans that are request- and session-scoped available further down the call chain.

DispatcherServlet, RequestContextListener, and RequestContextFilter 三者做了同样一件事情，就是通过名称将 HTTP Request 绑定到当前的Thread，

Request scope
1
<bean id="loginAction" class="com.foo.LoginAction" scope="request"/>

The Spring container creates a new instance of the LoginAction bean by using the loginAction bean definition for each and every HTTP request. That is, the loginAction bean is scoped at the HTTP request level. they are particular to an individual request. When the request completes processing, the bean that is scoped to the request is discarded.

上面的描述说得非常的清楚了，就是一个 request scope 的 bean 会在每个 request 请求中创建一个，并且当 request 请求结束以后自动销毁。

When using annotation-driven components or Java Config, the @RequestScope annotation can be used to assign a component to the request scope.

1
2
3
4
5
@RequestScope
@Component
public class LoginAction {
    // ...
}

说实话，我在努力的想，有什么对象是 request 级别需要的？应该不会到Action这样高级别的对象( Controller )，因为 Controller 一般都是单例模式的。应该是一些细粒度的对象，比如某个验证码对象？加密解密对象？

Session scope
1
<bean id="userPreferences" class="com.foo.UserPreferences" scope="session"/>
1
2
3
4
5
@SessionScope
@Component
public class UserPreferences {
    // ...
}
Global session scope
1
<bean id="userPreferences" class="com.foo.UserPreferences" scope="globalSession"/>

The globalSession scope is similar to the standard HTTP Session scope (described above), and applies only in the context of portlet-based web applications.

注意，这里明确指出了，globalSession只会用在 portlet-based 的 web 应用中。

If you write a standard Servlet-based web application and you define one or more beans as having globalSession scope, the standard HTTP Session scope is used, and no error is raised.

如果使用在标准的 Servlet-based web 应用的环境中，你如果使用 globalSession 将会默认使用 HTTP Session scope 而不会报任何的错误。

Application scope
1
<bean id="appPreferences" class="com.foo.AppPreferences" scope="application"/>

the appPreferences bean is scoped at the ServletContext level, stored as a regular ServletContext attribute.

This is somewhat similar to a Spring singleton bean but differs in two important ways: It is a singleton per ServletContext, not per Spring ‘ApplicationContext‘ (for which there may be several in any given web application), and it is actually exposed and therefore visible as a ServletContext attribute.

1
2
3
4
5
@ApplicationScope
@Component
public class AppPreferences {
    // ...
}
Scoped beans as dependencies

本小节描述的场景是，如何将一个短生命周期的 bean，比如 session scope 的 bean 注入到一个长生命周期的 bean 当中？如果我们像下面这样注入，

1
2
3
4
5
<bean id="userPreferences" class="com.foo.UserPreferences" scope="session"/>

<bean id="userManager" class="com.foo.UserManager">
    <property name="userPreferences" ref="userPreferences"/>
</bean>

这里的问题是，userManager 本身是一个单例模式，只会被容器初始化并加载一次；那么它的依赖，userPreferences 也同样只会被加载一次，就是最初的那个(即便容器会自动的创建和销毁 userPreferences，但 userManager 仍然只保留着最初的那个 userPreferences 的引用，如果被销毁了，那么该引用就指向 null)；所以，像上面的这种方式是不可取的。

我们需要换一种方式来注入，Spring 提供的解决方案就是，注入一个 UserPreferences 的代理 Proxy 而非 UserPrefereences 的对象本身，通过 UserPreference 的代理获取当前 Session Scope 中的 UserPreferences，如果当前 Session Scope 中该对象为 null，那么返回的是 null，如果当前对象不为 null，则返回该对象；这样，通过 Proxy 能够获取当前 Session Scope 中的 UserPreferences，就避开了前面 userManager 为单例所带来的初始化和加载的问题。

所以，正确的做法是，

1
2
3
4
5
6
7
8
9
10
11
<!-- an HTTP Session-scoped bean exposed as a proxy -->
<bean id="userPreferences" class="com.foo.UserPreferences" scope="session">
    <!-- instructs the container to proxy the surrounding bean -->
    <aop:scoped-proxy/>
</bean>

<!-- a singleton-scoped bean injected with a proxy to the above bean -->
<bean id="userService" class="com.foo.SimpleUserService">
    <!-- a reference to the proxied userPreferences bean -->
    <property name="userPreferences" ref="userPreferences"/>
</bean>

通过<aop:scoped-proxy/>将 UserPreferences 封装为其的代理对象。

Choosing the type of proxy to create

By default, when the Spring container creates a proxy for a bean that is marked up with the aop:scoped-proxy/ element, a CGLIB-based class proxy is created.

Alternatively, you can configure the Spring container to create standard JDK interface-based proxies for such scoped beans, by specifying false for the value of the proxy-target-class attribute of the <aop:scoped-proxy/>element; However, it also means that the class of the scoped bean must implement at least one interface,

1
2
3
4
5
6
7
8
<!-- DefaultUserPreferences implements the UserPreferences interface -->
<bean id="userPreferences" class="com.foo.DefaultUserPreferences" scope="session">
    <aop:scoped-proxy proxy-target-class="false"/>
</bean>

<bean id="userManager" class="com.foo.UserManager">
    <property name="userPreferences" ref="userPreferences"/>
</bean>

要求DefaultUserPreferences必须实现至少一个接口。

【7.5.5】 Custom scopes

The bean scoping mechanism is extensible; You can define your own scopes, or even redefine existing scopes, although the latter is considered bad practice and you cannot override the built-in singleton and prototype scopes.

Creating a custom scope

To integrate your custom scope(s) into the Spring container, you need to implement the org.springframework.beans.factory.config.Scope interface

Using a custom scope

to register a new Scope with the Spring container:

1
void registerScope(String scopeName, Scope scope);

This method is declared on the ConfigurableBeanFactory interface,

【7.6】 Customizing the nature of a bean

【7.6.1】 Lifecycle callbacks

To interact with the container’s management of the bean lifecycle, you can implement the Spring InitializingBean and DisposableBean interfaces. The container calls afterPropertiesSet() for the former and destroy() for the latter to allow the bean to perform certain actions upon initialization and destruction of your beans.

你可以通过 bean 实现InitializingBean和DisposableBean接口与 bean 的声明周期进行交互. 容器通过调用afterPropertiesSet()调用 bean 的InitializingBean方法，通过destroy()方法去调用 bean 的DisposableBean方法。

The JSR-250 @PostConstruct and @PreDestroy annotations are generally considered best practice for receiving lifecycle callbacks in a modern Spring application. Using these annotations means that your beans are not coupled to Spring specific interfaces. For details see Section 7.9.8, “@PostConstruct and @PreDestroy”.
If you don’t want to use the JSR-250 annotations but you are still looking to remove coupling consider the use of init-method and destroy-method object definition metadata.

使用@PostConstruct和@PreDestroy注解的方式实现 bean 声明周期交互式更好的方式，使得你的 bean 无需实现 Spring 额外的接口。

Internally, the Spring Framework uses BeanPostProcessor implementations to process any callback interfaces it can find and call the appropriate methods. If you need custom features or other lifecycle behavior Spring does not offer out-of-the-box, you can implement a BeanPostProcessor yourself. For more information, see Section 7.8, “Container Extension Points”.

在 Spring 内部，Spring 框架通过使用BeanPostProcessor接口的实现去处理接口的回调；如果你需要一些 Spring 容器没有提供的需要自定义的特性或者其它的生命周期相关的行为，你可以通过BeanPostProcessor接口自己实现。

In addition to the initialization and destruction callbacks, Spring-managed objects may also implement the Lifecycle interface so that those objects can participate in the startup and shutdown process as driven by the container’s own lifecycle.

额外的，除了 initialization 和 destruction 回调方法，Spring 容器中的 bean 也许可以实现容器的Lifecycle接口，使得它们能够参与到容器的启动和关闭的过程当中来。

下面就来看看容器Lifecycle的这些接口

Initialization callbacks

The org.springframework.beans.factory.InitializingBean interface allows a bean to perform initialization work after all necessary properties on the bean have been set by the container. The InitializingBean interface specifies a single method:

1
void afterPropertiesSet() throws Exception;

当 bean 所有的 properties 设置完毕以后，可以通过这个接口方法实现回调；

It is recommended that you do not use the InitializingBean interface because it unnecessarily couples the code to Spring.

不过不建议使用InitializingBean来实现一些前期初始化的工作，因为它与 Spring 的代码耦合。

Alternatively, use the @PostConstruct annotation or specify a POJO initialization method

或者也可以使用@PostConstruct注解的方式。

In the case of XML-based configuration metadata, you use the init-method attribute to specify the name of the method that has a void no-argument signature. With Java config, you use the initMethod attribute of @Bean,

如果使用的是 XML-based 的方式，可以使用 init-method 属性，见下面的例子，

1
<bean id="exampleInitBean" class="examples.ExampleBean" init-method="init"/>
1
2
3
4
5
6
7
public class ExampleBean {

    public void init() {
        // do some initialization work
    }

}

…​is exactly the same as…​

1
2
3
4
5
6
7
public class AnotherExampleBean implements InitializingBean {

    public void afterPropertiesSet() {
        // do some initialization work
    }

}
Destruction callbacks

Implementing the org.springframework.beans.factory.DisposableBean interface allows a bean to get a callback when the container containing it is destroyed.

1
void destroy() throws Exception;

同样不建议使用DisposableBean回调方法，因为它与 Spring 的代码耦合。建议使用@PreDestroy 或者 With XML-based configuration metadata, you use the destroy-method attribute on the . With Java config, you use the destroyMethod attribute of @Bean

Default initialization and destroy methods

如果你想自定义并且同意命名 initialization and destroy 方法的名称，可以在 XML-based 中的 中配置default-init-method和default-destroy-method属性。举例，

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
public class DefaultBlogService implements BlogService {

    private BlogDao blogDao;

    public void setBlogDao(BlogDao blogDao) {
        this.blogDao = blogDao;
    }

    // this is (unsurprisingly) the initialization callback method
    public void init() {
        if (this.blogDao == null) {
            throw new IllegalStateException("The [blogDao] property must be set.");
        }
    }

}
1
2
3
4
5
6
7
<beans default-init-method="init">

    <bean id="blogService" class="com.foo.DefaultBlogService">
        <property name="blogDao" ref="blogDao" />
    </bean>

</beans>
Combining lifecycle mechanisms

如果在一个 bean 中同时使用了几种声明周期方法的声明的方式，the InitializingBean and DisposableBean callback interfaces; custom init() and destroy() methods; and the @PostConstruct and @PreDestroy annotations. You can combine these mechanisms to control a given bean

他们依次被调用的方式如下，

Multiple lifecycle mechanisms configured for the same bean, with different initialization methods, are called as follows:

  • Methods annotated with @PostConstruct
  • afterPropertiesSet() as defined by the InitializingBean callback interface
  • A custom configured init() method

Destroy methods are called in the same order:

  • Methods annotated with @PreDestroy
  • destroy() as defined by the DisposableBean callback interface
  • A custom configured destroy() method
Startup and shutdown callbacks

Spring 容器中的 bean 可以实现Lifecycle接口参与容器启动和销毁的声明周期中，

1
2
3
4
5
6
7
8
9
public interface Lifecycle {

    void start();

    void stop();

    boolean isRunning();

}

Then, when the ApplicationContext itself receives start and stop signals, e.g. for a stop/restart scenario at runtime, it will cascade those calls to all Lifecycle implementations defined within that context. It does this by delegating to a LifecycleProcessor:

然后，当ApplicationContext收到了启动和停止的信号以后，容器将会把这些调用级联给容器中实现了Lifecycle的实例；它是通过LifecycleProcessor实现的这个行为，

1
2
3
4
5
6
7
public interface LifecycleProcessor extends Lifecycle {

    void onRefresh();

    void onClose();

}

Note that the regular org.springframework.context.Lifecycle interface is just a plain contract for explicit start/stop notifications and does NOT imply auto-startup at context refresh time. Consider implementing org.springframework.context.SmartLifecycle instead for fine-grained control over auto-startup of a specific bean (including startup phases).

使用Lifecycle接口有弊端，建议使用SmartLifecycle接口

Shutting down the Spring IoC container gracefully in non-web applications

本章节大致的意思是，如果你将 Spring Container 使用到桌面应用开发，非 web 应用开发，这个时候，如果你想要 shut down the Spring IoC container gracefully when the relevant client application is shut down 的话，you should register a shutdown hook with the JVM. Doing so ensures a graceful shutdown and calls the relevant destroy methods on your singleton beans so that all resources are released. Of course, you must still configure and implement these destroy callbacks correctly. 你就需要注册一个 shutdown hook，这样的话，才会优雅的 shutdown 并且会调用你的 singleton beans 的 destroy 方法进而释放掉其它资源。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
import org.springframework.context.ConfigurableApplicationContext;
import org.springframework.context.support.ClassPathXmlApplicationContext;

public final class Boot {

    public static void main(final String[] args) throws Exception {

        ConfigurableApplicationContext ctx = new ClassPathXmlApplicationContext(
                new String []{"beans.xml"});

        // add a shutdown hook for the above context...
        ctx.registerShutdownHook();

        // app runs here...

        // main method exits, hook is called prior to the app shutting down...

    }
}

【7.6.2】ApplicationContextAware and BeanNameAware

When an ApplicationContext creates an object instance that implements the org.springframework.context.ApplicationContextAware interface, the instance is provided with a reference to that ApplicationContext.

当ApplicationContext试图创建一个实现了ApplicationContextAware接口的对象实例的时候，该对象实例将会获得一个ApplicationContext的引用；

1
2
3
4
5
public interface ApplicationContextAware {

    void setApplicationContext(ApplicationContext applicationContext) throws BeansException;

}

因此，这个使得开发者有能力通过ApplicationContext来获得并控制容器中的 bean，但这不是被推荐的，因为它违背了 IoC 的设计初衷，

Other methods of the ApplicationContext provide access to file resources, publishing application events, and accessing a MessageSource. These additional features are described in Section 7.15, “Additional Capabilities of the ApplicationContext”

You can also use @Autowired for interfaces that are well-known resolvable dependencies: BeanFactory, ApplicationContext, Environment, ResourceLoader, ApplicationEventPublisher, and MessageSource. These interfaces and their extended interfaces, such as ConfigurableApplicationContext or ResourcePatternResolver, are automatically resolved, with no special setup necessary.

同样，可以直接使用@Autowired注解直接注入ApplicationContext。

1
2
3
4
5
6
7
8
9
10
11
public class MovieRecommender {

    @Autowired
    private ApplicationContext context;

    public MovieRecommender() {
    }

    // ...

}

Ok，这里总结一下，获得 ApplicationContext 的两种途径

  1. XML-bean 的方式，可以通过实现ApplicationContextAware的方式获得
  2. @Autowired 的方式

When an ApplicationContext creates a class that implements the org.springframework.beans.factory.BeanNameAware interface, the class is provided with a reference to the name defined in its associated object definition.

1
2
3
4
5
public interface BeanNameAware {

    void setBeanName(String name) throws BeansException;

}

【7.6.3】Other Aware interfaces

Table 7.4. Aware interfaces

ApplicationContextAware
ApplicationEventPublisherAware
BeanClassLoaderAware
BeanFactoryAware
BeanNameAware
BootstrapContextAware
LoadTimeWeaverAware
….

http://docs.spring.io/spring/docs/current/spring-framework-reference/htmlsingle/#aware-list

【7.7】Bean definition inheritance

定义 bean 的继承关系

If you work with an ApplicationContext interface programmatically, child bean definitions are represented by the ChildBeanDefinition class

When you use XML-based configuration metadata, you indicate a child bean definition by using the parent attribute, specifying the parent bean as the value of this attribute.

1
2
3
4
5
6
7
8
9
10
11
12
<bean id="inheritedTestBean" abstract="true"
        class="org.springframework.beans.TestBean">
    <property name="name" value="parent"/>
    <property name="age" value="1"/>
</bean>

<bean id="inheritsWithDifferentClass"
        class="org.springframework.beans.DerivedTestBean"
        parent="inheritedTestBean" init-method="initialize">
    <property name="name" value="override"/>
    <!-- the age property value of 1 will be inherited from parent -->
</bean>

A child bean definition inherits scope, constructor argument values, property values, and method overrides from the parent,

【7.8】Container Extension Points

Typically, an application developer does not need to subclass ApplicationContext implementation classes. Instead, the Spring IoC container can be extended by plugging in implementations of special integration interfaces. The next few sections describe these integration interfaces.

【7.8.1】Customizing beans using a BeanPostProcessor

The BeanPostProcessor interface defines callback methods that you can implement to provide your own (or override the container’s default) instantiation logic, dependency-resolution logic, and so forth.

BeanPostProcessor接口定义了允许你自定义实例化的逻辑，依赖解析的逻辑等等的回调方法。

If you want to implement some custom logic after the Spring container finishes instantiating, configuring, and initializing a bean, you can plug in one or more BeanPostProcessor implementations.

如果你想在当 Spring 容器完成实例化、配置以及初始化完一个 bean 的时候加入一些自定义的逻辑，你可以插入一个或者多个BeanPostProcessor的实现。

备注：Annotation-based 解析的模式就是通过BeanPostProcessor接口实现了AutowiredAnnotationBeanPostProcessor, CommonAnnotationBeanPostProcessor, PersistenceAnnotationBeanPostProcessor, as well as the aforementioned RequiredAnnotationBeanPostProcessor等实现类完成的。

You can configure multiple BeanPostProcessor instances, and you can control the order in which these BeanPostProcessors execute by setting the order property. You can set this property only if the BeanPostProcessor implements the Ordered interface; if you write your own BeanPostProcessor you should consider implementing the Ordered interface too. For further details, consult the javadocs of the BeanPostProcessor and Ordered interfaces. See also the note below on programmatic registration of BeanPostProcessors.

注意以下几点，

  • BeanPostProcessors operate on bean (or object) instances; that is to say, the Spring IoC container instantiates a bean instance and then BeanPostProcessors do their work.
    BeanPostProcessors只是在 bean 或者对象的实例上操作；也就是说，Spring IoC 容器初始化好一个 bean，然后由BeanPostProcessors来进行处理；
  • BeanPostProcessors are scoped per-container. This is only relevant if you are using container hierarchies. If you define a BeanPostProcessor in one container, it will only post-process the beans in that container. In other words, beans that are defined in one container are not post-processed by a BeanPostProcessor defined in another container, even if both containers are part of the same hierarchy.
    这大段内容表明，BeanPostProcessors的作用域只在当前的容器中，提出这个论点的背景在于，当在一个具有继承关系的多个容器中的时候；
  • To change the actual bean definition (i.e., the blueprint that defines the bean), you instead need to use a BeanFactoryPostProcessor as described in Section 7.8.2, “Customizing configuration metadata with a BeanFactoryPostProcessor”.
    要改变一个 bean 的定义(比如，改变一个 bean 的 receip )，你需要使用的是BeanFactoryProcessor。

The org.springframework.beans.factory.config.BeanPostProcessor interface consists of exactly two callback methods. When such a class is registered as a post-processor with the container, for each bean instance that is created by the container, the post-processor gets a callback from the container both before container initialization methods (such as InitializingBean’s afterPropertiesSet() and any declared init method) are called as well as after any bean initialization callbacks. The post-processor can take any action with the bean instance, including ignoring the callback completely. A bean post-processor An ApplicationContext automatically detects any beans that are defined in the configuration metadata which implement the BeanPostProcessor interface. The ApplicationContext registers these beans as post-processors so that they can be called later upon bean creation. Bean post-processors can be deployed in the container just like any other beans.

org.springframework.beans.factory.config.BeanPostProcessor接口只包含两个回调方法；当某个类在容器中被注册为post-processor，当每一个 bean 实例被容器创建的时候，该post-processor将会从容器中接收到两次回调，一次是当容器在进行实例的初始化方法之前(比如在调用 InitializingBean 的 afterPropertiesSet 方法或者任何 init 方法)的回调，一次是在 bean 实例化后的回调；(我的补充，BeanPostProcessor只是在 bean 实例化之前和之后进行额外的回调操作，并不会影响 bean 的实例化过程，bean 的实例化逻辑依然是通过 Spring 容器控制的)；

An ApplicationContext automatically detects any beans that are defined in the configuration metadata which implement the BeanPostProcessor interface. The ApplicationContext registers these beans as post-processors so that they can be called later upon bean creation. Bean post-processors can be deployed in the container just like any other beans.

ApplicationContext会自动的检测哪些 bean 在配置属性中实现了BeanProcessor接口，然后ApplicationContext会将这些 bean 作为post-processors进行注册，所以他们可以在 bean creation 的时候被回调。post-processors beans 可以和其它类型的 bean 一样在容器中部署。

Note that when declaring a BeanPostProcessor using an @Bean factory method on a configuration class, the return type of the factory method should be the implementation class itself or at least the org.springframework.beans.factory.config.BeanPostProcessor interface, clearly indicating the post-processor nature of that bean. Otherwise, the ApplicationContext won’t be able to autodetect it by type before fully creating it. Since a BeanPostProcessor needs to be instantiated early in order to apply to the initialization of other beans in the context, this early type detection is critical.

要注意的是，当在一个声明为 @Bean 的configuration 类的工厂方法上声明BeanPostProcessor，其返回类型应该是BeanPostProcessor接口的实现类或者至少实现了org.springframework.beans.factory.config.BeanPostProcessor接口，目的是为了清晰的表明我是一个具有post-processor特性的 bean；不然的话，ApplicationContext不能自动识别其为post-processor。而因为BeanPostProcessor需要在早起就进行实例化，所以，这里的类型检查尤为重要。

注意事项

  1. While the recommended approach for BeanPostProcessor registration is through ApplicationContext auto-detection (as described above), it is also possible to register them programmatically against a ConfigurableBeanFactory using the addBeanPostProcessor method. This can be useful when needing to evaluate conditional logic before registration, or even for copying bean post processors across contexts in a hierarchy. Note however that BeanPostProcessors added programmatically do not respect the Ordered interface. Here it is the order of registration that dictates the order of execution. Note also that BeanPostProcessors registered programmatically are always processed before those registered through auto-detection, regardless of any explicit ordering.
    虽然推荐使用ApplicationContext自动检测的方式来注册BeanPostProcessor，但是，也可以通过ConfigurableBeanFactory使用程序代码的方式进行注册；这样做当需要在注册之前进行验证或者是直接在多重继承的 contexts 中拷贝 post-processors 是有用的；但是，需要注意的是，当通过程序代码的方式添加的BeanPostProcessors会忽略Ordered接口，他们会在通过 auto-detected 注入的 post-processors 之前执行。
  1. Classes that implement the BeanPostProcessor interface are special and are treated differently by the container. All BeanPostProcessors and beans that they reference directly are instantiated on startup, as part of the special startup phase of the ApplicationContext. Next, all BeanPostProcessors are registered in a sorted fashion and applied to all further beans in the container. Because AOP auto-proxying is implemented as a BeanPostProcessor itself, neither BeanPostProcessors nor the beans they reference directly are eligible for auto-proxying, and thus do not have aspects woven into them.
    For any such bean, you should see an informational log message: “Bean foo is not eligible for getting processed by all BeanPostProcessor interfaces (for example: not eligible for auto-proxying)“.
    通过接口BeanPostProcessor实现的类比较特殊而被容器特殊对待；所有的BeanPostProcessors和与其相关的 bean 都会在容器启动的时候((on startup)的进行实例化，被当做是ApplicationContext的一个特殊的启动阶段进行。然后，所有的BeanPostProcessor统一按照排序规则注册并提供给所有容器中的 beans。因为 AOP 自动代理(auto-proxing)自身是被实现为BeanPostProcessor，所以，无论是BeanPostProcessors或者是与之有关联关系的 beans 都不能使用自动代理(auto-proxing)，也因此，就不能对它们进行切面编织。如果这样做，你将会看到这样的错误信息：“ Bean foo 不适合 … auto-proxing..”
  1. Note that if you have beans wired into your BeanPostProcessor using autowiring or @Resource (which may fall back to autowiring), Spring might access unexpected beans when searching for type-matching dependency candidates, and therefore make them ineligible for auto-proxying or other kinds of bean post-processing. For example, if you have a dependency annotated with @Resource where the field/setter name does not directly correspond to the declared name of a bean and no name attribute is used, then Spring will access other beans for matching them by type.
    要注意的是，如果你在BeanPostProcessor中使用注解autowired或者@Resource，当使用类型匹配所依赖的 beans 的时候( type-matching dependency candidates ) Spring 很有可能访问不到你所期望的 beans，…..
Example: Hello World, BeanPostProcessor-style

The example shows a custom BeanPostProcessor implementation that invokes the toString() method of each bean as it is created by the container and prints the resulting string to the system console.

下面这个例子显示了如何通过使用自定义的BeanPostProcessor打印出某个被 Spring Container 所创建的 bean 的信息；

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
package scripting;

import org.springframework.beans.factory.config.BeanPostProcessor;
import org.springframework.beans.BeansException;

public class InstantiationTracingBeanPostProcessor implements BeanPostProcessor {

    // simply return the instantiated bean as-is
    public Object postProcessBeforeInitialization(Object bean,
            String beanName) throws BeansException {
        return bean; // we could potentially return any object reference here...
    }

    public Object postProcessAfterInitialization(Object bean,
            String beanName) throws BeansException {
        System.out.println("Bean '" + beanName + "' created : " + bean.toString());
        return bean;
    }

}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:lang="http://www.springframework.org/schema/lang"
    xsi:schemaLocation="http://www.springframework.org/schema/beans
        http://www.springframework.org/schema/beans/spring-beans.xsd
        http://www.springframework.org/schema/lang
        http://www.springframework.org/schema/lang/spring-lang.xsd">

    <lang:groovy id="messenger"
            script-source="classpath:org/springframework/scripting/groovy/Messenger.groovy">
        <lang:property name="message" value="Fiona Apple Is Just So Dreamy."/>
    </lang:groovy>

    <!--
    when the above bean (messenger) is instantiated, this custom
    BeanPostProcessor implementation will output the fact to the system console
    -->
    <bean class="scripting.InstantiationTracingBeanPostProcessor"/>

</beans>

Notice how the InstantiationTracingBeanPostProcessor is simply defined. It does not even have a name, and because it is a bean it can be dependency-injected just like any other bean.

注意，InstantiationTracingBeanPostProcessor为什么可以就这么简单的定义，甚至没有一个名字，这是因为它本身就是一个 bean 和其它 bean 一样可以被注入到容器中，而容器发现它实现了BeanPostProcessor接口，就会自动的将它注册为post-processors。

下面的代码将初始化并启动容器。

1
2
3
4
5
6
7
8
9
10
11
12
13
import org.springframework.context.ApplicationContext;
import org.springframework.context.support.ClassPathXmlApplicationContext;
import org.springframework.scripting.Messenger;

public final class Boot {

    public static void main(final String[] args) throws Exception {
        ApplicationContext ctx = new ClassPathXmlApplicationContext("scripting/beans.xml");
        Messenger messenger = (Messenger) ctx.getBean("messenger");
        System.out.println(messenger);
    }

}

The output of the preceding application resembles the following:

1
2
Bean 'messenger' created : org.springframework.scripting.groovy.GroovyMessenger@272961
org.springframework.scripting.groovy.GroovyMessenger@272961
Example: The RequiredAnnotationBeanPostProcessor

Using callback interfaces or annotations in conjunction with a custom BeanPostProcessor implementation is a common means of extending the Spring IoC container. An example is Spring’s RequiredAnnotationBeanPostProcessor - a BeanPostProcessor implementation that ships with the Spring distribution which ensures that JavaBean properties on beans that are marked with an (arbitrary) annotation are actually (configured to be) dependency-injected with a value.

当一个自定义的BeanPostProcessor是通过回调接口或者注解实现的，实际上都是 Spring IoC 容器的延生；一个例子，RequiredAnnotationBeanPostProcessor - BeanPostProcessor的实现类，保证 JavaBean 的 annotation 属性被实实在在的被依赖注入了一个值；(感觉像是类型检查？)

【7.8.2】Customizing configuration metadata with a BeanFactoryPostProcessor

The next extension point that we will look at is the org.springframework.beans.factory.config.BeanFactoryPostProcessor. The semantics of this interface are similar to those of the BeanPostProcessor, with one major difference: BeanFactoryPostProcessor operates on the bean configuration metadata; that is, the Spring IoC container allows a BeanFactoryPostProcessor to read the configuration metadata and potentially change it before the container instantiates any beans other than BeanFactoryPostProcessors.

下一个出场的扩展点是org.springframework.beans.factory.config.BeanFactoryPostProcessor；它的语法定义和行为和BeanPostProcessor非常相似，但是有一个重要的区别：BeanFactoryPostProcessor是在定义 bean 的元数据上进行操作，也就是说，Spring IoC 容器允许在一个 bean 实例化之前通过BeanFactoryPostProcessor读取并修改定义 bean 的元数据，而这一点BeanPostProcessor做不到。

You can configure multiple BeanFactoryPostProcessors, and you can control the order in which these BeanFactoryPostProcessors execute by setting the order property. However, you can only set this property if the BeanFactoryPostProcessor implements the Ordered interface. If you write your own BeanFactoryPostProcessor, you should consider implementing the Ordered interface too. Consult the javadocs of the BeanFactoryPostProcessor and Ordered interfaces for more details.

你可以配置多个BeanFactoryPostProcessors，你可以通过设置 order 属性来控制BeanFactoryPostProcessors的执行顺序。但是，你的BeanFactoryPostProcessors必须实现Ordered interface接口才能设置Order…

注意如下两点

  1. If you want to change the actual bean instances (i.e., the objects that are created from the configuration metadata), then you instead need to use a BeanPostProcessor (described above in Section 7.8.1, “Customizing beans using a BeanPostProcessor”). While it is technically possible to work with bean instances within a BeanFactoryPostProcessor (e.g., using BeanFactory.getBean()), doing so causes premature bean instantiation, violating the standard container lifecycle. This may cause negative side effects such as bypassing bean post processing.
    如果你只是想要修改已经创建好的 bean instances，那么请使用BeanPostProcessor；当然你可以使用BeanFactoryPostProcessor在实例初始化之前修改 bean 的配置，但这会破坏 bean 实例化的原有行为，而导致一些副作用；这里作者是在强调要慎用BeanFactoryPostProcessor
  1. Also, BeanFactoryPostProcessors are scoped per-container. This is only relevant if you are using container hierarchies. If you define a BeanFactoryPostProcessor in one container, it will only be applied to the bean definitions in that container. Bean definitions in one container will not be post-processed by BeanFactoryPostProcessors in another container, even if both containers are part of the same hierarchy.
    BeanFactoryPostProcessors的作用范围也是 per-container 的。

A bean factory post-processor is executed automatically when it is declared inside an ApplicationContext, in order to apply changes to the configuration metadata that define the container. Spring includes a number of predefined bean factory post-processors, such as PropertyOverrideConfigurer and PropertyPlaceholderConfigurer. A custom BeanFactoryPostProcessor can also be used, for example, to register custom property editors.

一个在ApplicationContext中声明为 bean factory post-processor 的实例将会被自动执行，目的是为了修改定义容器的配置元数据。Spring 包含了一些列的预先定义好的 bean factory post-processors，比如PropertyOverrideConfigurer、PropertyPlaceholderConfigurer等；当然也可以通过BeanFactoryPostProcessor接口实现自定义，比如，注册一个自定义的属性编辑器(property editors)。

An ApplicationContext automatically detects any beans that are deployed into it that implement the BeanFactoryPostProcessor interface. It uses these beans as bean factory post-processors, at the appropriate time. You can deploy these post-processor beans as you would any other bean.

ApplicationContext自动的检测那些实现了BeanFactoryPostProcessor接口的 beans，并且在合适的时间将它们当做 bean factory post-processors 使用；你可以像部署其它 beans 那样部署 bean factory post-processors。

Example: the Class name substitution PropertyPlaceholderConfigurer

You use the PropertyPlaceholderConfigurer to externalize property values from a bean definition in a separate file using the standard Java Properties format. Doing so enables the person deploying an application to customize environment-specific properties such as database URLs and passwords, without the complexity or risk of modifying the main XML definition file or files for the container.

你可以使用PropertyPlaceholderConfigurer通过标准的 Java Properties 格式将一个 bean 的配置信息写入到一个外部文件中。这样做，使得一个应用可以部署到不同的特定的环境中，比如不同的数据库链接或者密匙的环境中，而不必担心直接修改某些核心 XML 配置定义而带来的复杂性和风险性。(感受，这段比较难翻译… 能看得很明白，但是要写成中文，怎么感觉那么难.. )

Consider the following XML-based configuration metadata fragment, where a DataSource with placeholder values is defined. The example shows properties configured from an external Properties file. At runtime, a PropertyPlaceholderConfigurer is applied to the metadata that will replace some properties of the DataSource. The values to replace are specified as placeholders of the form ${property-name} which follows the Ant / log4j / JSP EL style.

考虑如下这个 XML-based configuration metadata 的段落，一个含有 placeholder values 的DataSource元素被定义。下面的这个例子显示了如何将其配置定义到一个外部配置文件中。在执行的时候，一个PropertyPlaceholderConfigurer实例将会替换某些DataSource的属性。这些可以被替换的 placeholders 被标注为 ${property-name} 的形式，符合 Ant / log4j /JSP EL 的风格。

1
2
3
4
5
6
7
8
9
10
11
<bean class="org.springframework.beans.factory.config.PropertyPlaceholderConfigurer">
    <property name="locations" value="classpath:com/foo/jdbc.properties"/>
</bean>

<bean id="dataSource" destroy-method="close"
        class="org.apache.commons.dbcp.BasicDataSource">
    <property name="driverClassName" value="${jdbc.driverClassName}"/>
    <property name="url" value="${jdbc.url}"/>
    <property name="username" value="${jdbc.username}"/>
    <property name="password" value="${jdbc.password}"/>
</bean>

The actual values come from another file in the standard Java Properties format:

1
2
3
4
jdbc.driverClassName=org.hsqldb.jdbcDriver
jdbc.url=jdbc:hsqldb:hsql://production:9002
jdbc.username=sa
jdbc.password=root

Therefore, the string ${jdbc.username} is replaced at runtime with the value ‘sa’, and the same applies for other placeholder values that match keys in the properties file. The PropertyPlaceholderConfigurer checks for placeholders in most properties and attributes of a bean definition. Furthermore, the placeholder prefix and suffix can be customized.

因此，dataSource中的配置定义${jdbc.username}将会被sa值在 runtime 的时期被替换掉，其它的 placeholders 也会被相应的替换；PropertyPlaceholderConfigurer将会检查 bean definition 中几乎素有的 properties 和 attributes；进一步，the placeholder prefix and suffix can be customized.

With the context namespace introduced in Spring 2.5, it is possible to configure property placeholders with a dedicated configuration element. One or more locations can be provided as a comma-separated list in the location attribute.

从 Spring 2.5 开始，可以使用 context namespace property-placeholder 来简化引用外部属性文件的配置，可以使用逗号分隔符部署多个配置文件，

1
<context:property-placeholder location="classpath:com/foo/jdbc.properties"/>

The PropertyPlaceholderConfigurer not only looks for properties in the Properties file you specify. By default it also checks against the Java System properties if it cannot find a property in the specified properties files. You can customize this behavior by setting the systemPropertiesMode property of the configurer with one of the following three supported integer values:

  • never (0): Never check system properties
  • fallback (1): Check system properties if not resolvable in the specified properties files. This is the default.
  • override (2): Check system properties first, before trying the specified properties files. This allows system properties to override any other property source.

PropertyPlaceholderConfigurer不仅仅从你所指定的属性文件中查找，默认的，如果它从你所指定的文件中没有找到需要的属性，它还会从 Java System properties中进行查找；你可以通过配置systemPropertiesMode来定义该行为，

  • never (0): 从不检查 system properties
  • fallback (1) …..

Consult the PropertyPlaceholderConfigurer javadocs for more information.

You can use the PropertyPlaceholderConfigurer to substitute class names, which is sometimes useful when you have to pick a particular implementation class at runtime. For example:

1
2
3
4
5
6
7
8
9
10
<bean class="org.springframework.beans.factory.config.PropertyPlaceholderConfigurer">
    <property name="locations">
        <value>classpath:com/foo/strategy.properties</value>
    </property>
    <property name="properties">
        <value>custom.strategy.class=com.foo.DefaultStrategy</value>
    </property>
</bean>

<bean id="serviceStrategy" class="${custom.strategy.class}"/>

PropertyPlaceholderConfigurer可以直接通过进行配置，上述的例子表明，连 classname 都可以通过配置替换，看来，任何 Spring Container 中的配置信息都可以通过PropertyPlaceholderConfigurer来进行提花，功能不可谓不强大；

If the class cannot be resolved at runtime to a valid class, resolution of the bean fails when it is about to be created, which is during the preInstantiateSingletons() phase of an ApplicationContext for a non-lazy-init bean.

当然，如果通过上述的配置方式，在 runtime 的时候若解析失败，这个失败是从容器初始化过程中ApplicationContext的preInstantiateSingletons()阶段抛出来的，前提是，non-lazy-init bean。

Example: the PropertyOverrideConfigurer

The PropertyOverrideConfigurer, another bean factory post-processor, resembles the PropertyPlaceholderConfigurer, but unlike the latter, the original definitions can have default values or no values at all for bean properties. If an overriding Properties file does not have an entry for a certain bean property, the default context definition is used.

PropertyOverrideConfigurer另外一个 bean factory post-processor，类似PropertyPlaceholderConfigurer，但是又和它不同，当在 overriding Properties 文件中并没有找到与 bean property 对应的 entry 的时候，将会使用默认的 context definition

Note that the bean definition is not aware of being overridden, so it is not immediately obvious from the XML definition file that the override configurer is being used. In case of multiple PropertyOverrideConfigurer instances that define different values for the same bean property, the last one wins, due to the overriding mechanism.

注意，bean definitions 自身并不知道正在被 overriden，所以正在被 overriden 的 xml definitiion 并不会马上生效，万一同时有多个PropertyOverrideConfigurer为同一个 bean property 定义了不同的替换值，这个时候，采取的是 last wins 机制；

Properties file configuration lines take this format:

1
beanName.property=value

注意，有个beanName;

For Example,

1
2
dataSource.driverClassName=com.mysql.jdbc.Driver
dataSource.url=jdbc:mysql:mydb

This example file can be used with a container definition that contains a bean called dataSource, which has driver and url properties.

Compound property names are also supported, as long as every component of the path except the final property being overridden is already non-null (presumably initialized by the constructors). In this example…​

1
foo.fred.bob.sammy=123

the sammy property of the bob property of the fred property of the foo bean is set to the scalar value 123.

这里非常形象的描述了如何对原有的 bean definitions 进行覆盖的..

With the context namespace introduced in Spring 2.5, it is possible to configure property overriding with a dedicated configuration element:

1
<context:property-override location="classpath:override.properties"/>

【7.8.3】Customizing instantiation logic with a FactoryBean

Implement the org.springframework.beans.factory.FactoryBean interface for objects that are themselves factories.

通过实现org.springframework.beans.factory.FactoryBean接口实现自己的工厂类；

The FactoryBean interface is a point of pluggability into the Spring IoC container’s instantiation logic. If you have complex initialization code that is better expressed in Java as opposed to a (potentially) verbose amount of XML, you can create your own FactoryBean, write the complex initialization inside that class, and then plug your custom FactoryBean into the container.

FactoryBean接口是 Spring IoC 容器实例化的一个可插入的节点；如果你有比较复杂的实例化逻辑最好使用 Java Code 而不是使用 XML 配置，你可以创建你自己的FactoryBean，在里面写一些复杂的实例化逻辑，然后将该FactoryBean插入到容器中。

The FactoryBean interface provides three methods:

  • Object getObject(): returns an instance of the object this factory creates. The instance can possibly be shared, depending on whether this factory returns singletons or prototypes.
  • boolean isSingleton(): returns true if this FactoryBean returns singletons, false otherwise.
  • Class getObjectType(): returns the object type returned by the getObject() method or null if the type is not known in advance.

The FactoryBean concept and interface is used in a number of places within the Spring Framework; more than 50 implementations of the FactoryBean interface ship with Spring itself.

When you need to ask a container for an actual FactoryBean instance itself instead of the bean it produces, preface the bean’s id with the ampersand symbol (&) when calling the getBean() method of the ApplicationContext. So for a given FactoryBean with an id of myBean, invoking getBean("myBean") on the container returns the product of the FactoryBean; whereas, invoking getBean("&myBean") returns the FactoryBean instance itself.

如果你想获得一个真正的FactoryBean实例比如称作 myBean，使用getBean(&myBean)，它会返回FactoryBean实例自己，如果使用getBean(myBean)，只会返回由FactoryBean构造出来的 product( beans )。

【7.9】Annotation-based container configuration

As mentioned in the section called “Example: The RequiredAnnotationBeanPostProcessor”, using a BeanPostProcessor in conjunction with annotations is a common means of extending the Spring IoC container. For example, Spring 2.0 introduced the possibility of enforcing required properties with the @Required annotation. Spring 2.5 made it possible to follow that same general approach to drive Spring’s dependency injection. Essentially, the @Autowired annotation provides the same capabilities as described in Section 7.4.5, “Autowiring collaborators” but with more fine-grained control and wider applicability. Spring 2.5 also added support for JSR-250 annotations such as @PostConstruct, and @PreDestroy. Spring 3.0 added support for JSR-330 (Dependency Injection for Java) annotations contained in the javax.inject package such as @Inject and @Named. Details about those annotations can be found in the relevant section.

(上面这段摘要描述了 Spring Annotation 的发展过程)
正如“Example: The RequiredAnnotationBeanPostProcessor”小节所描述的那样，和 annotations 的结合是 Spring IoC Container 的一般意义上的延生；比如，Spring 2.0 提供了能够强制注入所需要的 properties 的可能性的@Required注解；如Section 7.4.5, “Autowiring collaborators” 所描述的那样，Spring 2.5 所提供的@Autowired注解基本上提供了差不多相同的能力，但有更细粒度的控制和更广泛的用途；Spring 2.5 还添加了对 JSR0250 注解的支持，比如@PstConstruct和@PreDestroy注解。Spring 3.0 添加了对 JSR-330注解的支持，比如@Inject和@Named。

注意，

Annotation injection is performed before XML injection, thus the latter configuration will override the former for properties wired through both approaches.

这里重要了，Annotation 注入是先于 XML 注入的，并且注意，后注入的实例会覆盖掉先前注入的相同实例；也就是说，如果通过 Annotation 和 XML 共同注册了同一个实例，那么 XML 所注入的实例会覆盖掉通过 Annotation 所注入的实例。

1
2
3
4
5
6
7
8
9
10
11
12
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:context="http://www.springframework.org/schema/context"
    xsi:schemaLocation="http://www.springframework.org/schema/beans
        http://www.springframework.org/schema/beans/spring-beans.xsd
        http://www.springframework.org/schema/context
        http://www.springframework.org/schema/context/spring-context.xsd">

    <context:annotation-config/>

</beans>

(The implicitly registered post-processors include AutowiredAnnotationBeanPostProcessor, CommonAnnotationBeanPostProcessor, PersistenceAnnotationBeanPostProcessor, as well as the aforementioned RequiredAnnotationBeanPostProcessor.)

上述配置方式，将会隐含的注入AutowiredAnnotationBeanPostProcessor，CommonAnnotationBeanPostProcessor，PersistenceAnnotationBeanPostProcessor以及RequiredAnnotationBeanPostProcessor；言外之意，Annotation Driven Configuration 就是通过这些实现类实现的。

context:annotation-config/ only looks for annotations on beans in the same application context in which it is defined. This means that, if you put context:annotation-config/ in a WebApplicationContext for a DispatcherServlet, it only checks for @Autowired beans in your controllers, and not your services. See Section 22.2, “The DispatcherServlet” for more information.

【7.9.1】@Required

The @Required annotation applies to bean property setter methods, as in the following example:

1
2
3
4
5
6
7
8
9
10
11
12
public class SimpleMovieLister {

    private MovieFinder movieFinder;

    @Required
    public void setMovieFinder(MovieFinder movieFinder) {
        this.movieFinder = movieFinder;
    }

    // ...

}

【7.9.2】@Autowired

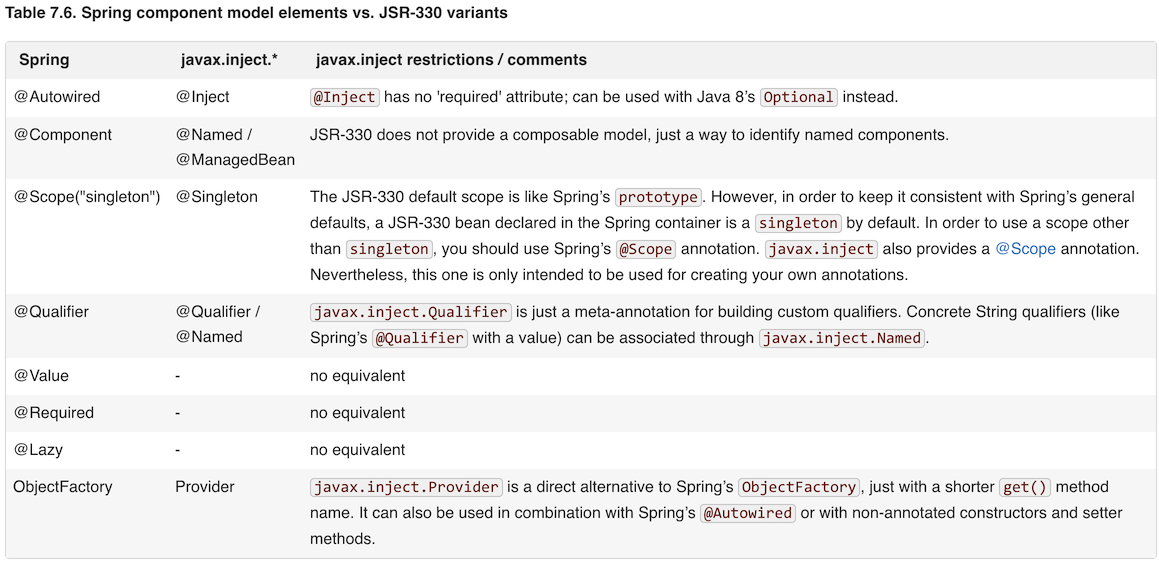

JSR 330’s @Inject annotation can be used in place of Spring’s @Autowired annotation in the examples below. See here for more details.

You can apply the @Autowired annotation to constructors:

1
2
3
4
5
6
7
8
9
10
11
12
public class MovieRecommender {

    private final CustomerPreferenceDao customerPreferenceDao;

    @Autowired
    public MovieRecommender(CustomerPreferenceDao customerPreferenceDao) {
        this.customerPreferenceDao = customerPreferenceDao;
    }

    // ...

}

As expected, you can also apply the @Autowired annotation to “traditional” setter methods:

1
2
3
4
5
6
7
8
9
10
11
12
public class SimpleMovieLister {

    private MovieFinder movieFinder;

    @Autowired
    public void setMovieFinder(MovieFinder movieFinder) {
        this.movieFinder = movieFinder;
    }

    // ...

}

You can also apply the annotation to methods with arbitrary names and/or multiple arguments:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
public class MovieRecommender {

    private MovieCatalog movieCatalog;

    private CustomerPreferenceDao customerPreferenceDao;

    @Autowired
    public void prepare(MovieCatalog movieCatalog,
            CustomerPreferenceDao customerPreferenceDao) {
        this.movieCatalog = movieCatalog;
        this.customerPreferenceDao = customerPreferenceDao;
    }

    // ...

}

You can apply @Autowired to fields as well and even mix it with constructors:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
public class MovieRecommender {

    private final CustomerPreferenceDao customerPreferenceDao;

    @Autowired
    private MovieCatalog movieCatalog;

    @Autowired
    public MovieRecommender(CustomerPreferenceDao customerPreferenceDao) {
        this.customerPreferenceDao = customerPreferenceDao;
    }

    // ...

}

By default, the autowiring fails whenever zero candidate beans are available; the default behavior is to treat annotated methods, constructors, and fields as indicating required dependencies. This behavior can be changed as demonstrated below.

正常情况下，当没有找到候选 beans 自动装载会失败，不过可以通过设置为 require=false 改变这一行为。

1
2
3
4
5
6
7
8
9
10
11
12
public class SimpleMovieLister {

    private MovieFinder movieFinder;

    @Autowired(required=false)
    public void setMovieFinder(MovieFinder movieFinder) {
        this.movieFinder = movieFinder;
    }

    // ...

}

You can also use @Autowired for interfaces that are well-known resolvable dependencies: BeanFactory, ApplicationContext, Environment, ResourceLoader, ApplicationEventPublisher, and MessageSource. These interfaces and their extended interfaces, such as ConfigurableApplicationContext or ResourcePatternResolver, are automatically resolved, with no special setup necessary.

我的神，这个比较重要了，可以直接通过 @Autowired 注入接口 BeanFactory, ApplicationContext, Environment, ResourceLoader, ApplicationEventPublisher, 和 MessageSource 以及注入他们的扩展接口ConfigurableApplicationContext和ResourcePatternResolver。

1
2
3
4
5
6
7
8
9
10
11
public class MovieRecommender {

    @Autowired
    private ApplicationContext context;

    public MovieRecommender() {
    }

    // ...

}

@Autowired, @Inject, @Resource, and @Value annotations are handled by Spring BeanPostProcessor implementations which in turn means that you cannot apply these annotations within your own BeanPostProcessor or BeanFactoryPostProcessor types (if any). These types must be ‘wired up’ explicitly via XML or using a Spring @Bean method.

@Autowired, @Inject, @Resource, 和 @Value 这些注解是通过BeanPostProcessor的实现处理的，也因此，你不能在 BeanPostProcessor or BeanFactoryPostProcessor 的 beans 中使用这些 Annotations，也因此你必须通过 XML 或者 @Bean 显示的声明它们。

【7.9.3】Fine-tuning annotation-based autowiring with @Primary

Because autowiring by type may lead to multiple candidates, it is often necessary to have more control over the selection process. One way to accomplish this is with Spring’s @Primary annotation. @Primary indicates that a particular bean should be given preference when multiple beans are candidates to be autowired to a single-valued dependency. If exactly one ‘primary’ bean exists among the candidates, it will be the autowired value.

当 autowiring 多个候选的时候，通常你需要在选择的过程中做一些额外的定义。一种方式是通过@Primary

1
2
3
4
5
6
7
8
9
10
11
12
13
@Configuration
public class MovieConfiguration {

    @Bean
    @Primary
    public MovieCatalog firstMovieCatalog() { ... }

    @Bean
    public MovieCatalog secondMovieCatalog() { ... }

    // ...

}
1
2
3
4
5
6
7
8
public class MovieRecommender {

    @Autowired
    private MovieCatalog movieCatalog;

    // ...

}

这样，当通过 MovieRecommender 注入 MovieCatalog 的时候会使用的是 firstMovieCatalog

使用 XML-Based，

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:context="http://www.springframework.org/schema/context"
    xsi:schemaLocation="http://www.springframework.org/schema/beans
        http://www.springframework.org/schema/beans/spring-beans.xsd
        http://www.springframework.org/schema/context
        http://www.springframework.org/schema/context/spring-context.xsd">

    <context:annotation-config/>

    <bean class="example.SimpleMovieCatalog" primary="true">
        <!-- inject any dependencies required by this bean -->
    </bean>

    <bean class="example.SimpleMovieCatalog">
        <!-- inject any dependencies required by this bean -->
    </bean>

    <bean id="movieRecommender" class="example.MovieRecommender"/>

</beans>

【7.9.4】Fine-tuning annotation-based autowiring with qualifiers

可以使用在属性上

1
2
3
4
5
6
7
8
9
public class MovieRecommender {

    @Autowired
    @Qualifier("main")
    private MovieCatalog movieCatalog;

    // ...

}

可以使用再构造函数上

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
public class MovieRecommender {

    private MovieCatalog movieCatalog;

    private CustomerPreferenceDao customerPreferenceDao;

    @Autowired
    public void prepare(@Qualifier("main")MovieCatalog movieCatalog,
            CustomerPreferenceDao customerPreferenceDao) {
        this.movieCatalog = movieCatalog;
        this.customerPreferenceDao = customerPreferenceDao;
    }

    // ...

}

相关的候选 beans 的定义如下，这里通过 XML-based

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:context="http://www.springframework.org/schema/context"
    xsi:schemaLocation="http://www.springframework.org/schema/beans
        http://www.springframework.org/schema/beans/spring-beans.xsd
        http://www.springframework.org/schema/context
        http://www.springframework.org/schema/context/spring-context.xsd">

    <context:annotation-config/>

    <bean class="example.SimpleMovieCatalog">
        <qualifier value="main"/>

        <!-- inject any dependencies required by this bean -->
    </bean>

    <bean class="example.SimpleMovieCatalog">
        <qualifier value="action"/>

        <!-- inject any dependencies required by this bean -->
    </bean>

    <bean id="movieRecommender" class="example.MovieRecommender"/>

</beans>

For a fallback match, the bean name is considered a default qualifier value. Thus you can define the bean with an id “main” instead of the nested qualifier element, leading to the same matching result.

当你没有设置 qualifier value 的是偶，bean name 被当做是默认的 qualifier value，当然你也可以设置 id 属性。

Qualifiers also apply to typed collections, as discussed above, for example, to Set<MovieCatalog>. In this case, all matching beans according to the declared qualifiers are injected as a collection. This implies that qualifiers do not have to be unique; they rather simply constitute filtering criteria. For example, you can define multiple MovieCatalog beans with the same qualifier value “action”, all of which would be injected into a Set<MovieCatalog> annotated with @Qualifier("action").

你可以对候选 MoiveCatalog bean 使用同一个 qualifier value，然后可以通过Set<MoiveCatalog>注入所有的 bean。

@Autowired is fundamentally about type-driven injection with optional semantic qualifiers.

@Autowired 是根据 type-driven 进行注入的。(备注：什么是 type-driven？这里指的就是 Class Type )

If you intend to express annotation-driven injection by name, do not primarily use @Autowired, even if is technically capable of referring to a bean name through @Qualifier values. Instead, use the JSR-250 @Resource annotation, which is semantically defined to identify a specific target component by its unique name, with the declared type being irrelevant for the matching process.@Autowired has rather different semantics: After selecting candidate beans by type, the specified String qualifier value will be considered within those type-selected candidates only, e.g. matching an “account” qualifier against beans marked with the same qualifier label.

这里有个很重要的提醒，如果你试图通过名字的方式来注入 bean，即便是@Autowired配合@Qualifier也可以找到对应的 bean，但最好不要首先考虑使用@Autowired，最好是使用@Resource注解，为什么呢？首先@Resource本身就是通过名字的方式注入的；而@Autowired有不同的解析过程，当根据 Class Type 选择完候选的 bean 是以后，才会在根据 qulifer value 在这些 candidates 中匹配，但是往往有可能事与愿违，有可能你希望的是，在不同的 Type (比如继承自同一个父类的多个 subclasses )中通过 qualifer value 筛选出想要的 bean 就很有可能找不到了。

You can create your own custom qualifier annotations. Simply define an annotation and provide the @Qualifier annotation within your definition:

1
2
3
4
5
6
7
@Target({ElementType.FIELD, ElementType.PARAMETER})
@Retention(RetentionPolicy.RUNTIME)
@Qualifier
public @interface Genre {

    String value();
}

Then you can provide the custom qualifier on autowired fields and parameters:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
public class MovieRecommender {

    @Autowired
    @Genre("Action")
    private MovieCatalog actionCatalog;
    private MovieCatalog comedyCatalog; // 怎么不在这个 field 上定义 @Genre("Comedy") ?

    @Autowired
    public void setComedyCatalog(@Genre("Comedy") MovieCatalog comedyCatalog) {
        this.comedyCatalog = comedyCatalog;
    }

    // ...

}

XML-based

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:context="http://www.springframework.org/schema/context"
    xsi:schemaLocation="http://www.springframework.org/schema/beans
        http://www.springframework.org/schema/beans/spring-beans.xsd
        http://www.springframework.org/schema/context
        http://www.springframework.org/schema/context/spring-context.xsd">

    <context:annotation-config/>

    <bean class="example.SimpleMovieCatalog">
        <qualifier type="Genre" value="Action"/>
        <!-- inject any dependencies required by this bean -->
    </bean>

    <bean class="example.SimpleMovieCatalog">
        <qualifier type="example.Genre" value="Comedy"/>
        <!-- inject any dependencies required by this bean -->
    </bean>

    <bean id="movieRecommender" class="example.MovieRecommender"/>

</beans>

In some cases, it may be sufficient to use an annotation without a value. This may be useful when the annotation serves a more generic purpose and can be applied across several different types of dependencies.

这里介绍的是可以通过自定的 Qualifier 的 type (不包含 value) 来区分需要加载的 bean

1
2
3
4
5
6
@Target({ElementType.FIELD, ElementType.PARAMETER})
@Retention(RetentionPolicy.RUNTIME)
@Qualifier
public @interface Offline {

}
1
2
3
4
5
6
7
8
9
public class MovieRecommender {

    @Autowired
    @Offline
    private MovieCatalog offlineCatalog;

    // ...

}
1
2
3
4
<bean class="example.SimpleMovieCatalog">
    <qualifier type="Offline"/>
    <!-- inject any dependencies required by this bean -->
</bean>

然而，还可以更进一步，自定义一个不使用 single value 的 Qualifier，可以定义 multiple attribute，但是匹配的时候，需要都匹配，看例子，

1
2
3
4
5
6
7
8
9
10
@Target({ElementType.FIELD, ElementType.PARAMETER})
@Retention(RetentionPolicy.RUNTIME)
@Qualifier
public @interface MovieQualifier {

    String genre();

    Format format();

}

Format 这里是一个 enum,

1
2
3
public enum Format {
    VHS, DVD, BLURAY
}

The fields to be autowired are annotated with the custom qualifier and include values for both attributes: genre and format.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
public class MovieRecommender {

    @Autowired
    @MovieQualifier(format=Format.VHS, genre="Action")
    private MovieCatalog actionVhsCatalog;

    @Autowired
    @MovieQualifier(format=Format.VHS, genre="Comedy")
    private MovieCatalog comedyVhsCatalog;

    @Autowired
    @MovieQualifier(format=Format.DVD, genre="Action")
    private MovieCatalog actionDvdCatalog;

    @Autowired
    @MovieQualifier(format=Format.BLURAY, genre="Comedy")
    private MovieCatalog comedyBluRayCatalog;

    // ...

}

xml-based

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:context="http://www.springframework.org/schema/context"
    xsi:schemaLocation="http://www.springframework.org/schema/beans
        http://www.springframework.org/schema/beans/spring-beans.xsd
        http://www.springframework.org/schema/context
        http://www.springframework.org/schema/context/spring-context.xsd">

    <context:annotation-config/>

    <bean class="example.SimpleMovieCatalog">
        <qualifier type="MovieQualifier">
            <attribute key="format" value="VHS"/>
            <attribute key="genre" value="Action"/>
        </qualifier>
        <!-- inject any dependencies required by this bean -->
    </bean>

    <bean class="example.SimpleMovieCatalog">
        <qualifier type="MovieQualifier">
            <attribute key="format" value="VHS"/>
            <attribute key="genre" value="Comedy"/>
        </qualifier>
        <!-- inject any dependencies required by this bean -->
    </bean>

    <bean class="example.SimpleMovieCatalog">
        <meta key="format" value="DVD"/>
        <meta key="genre" value="Action"/>
        <!-- inject any dependencies required by this bean -->
    </bean>

    <bean class="example.SimpleMovieCatalog">
        <meta key="format" value="BLURAY"/>
        <meta key="genre" value="Comedy"/>
        <!-- inject any dependencies required by this bean -->
    </bean>

</beans>

【7.9.5】Using generics as autowiring qualifiers

该篇文章介绍了如何使用泛型来作为 autowiring qualifiers

In addition to the @Qualifier annotation, it is also possible to use Java generic types as an implicit form of qualification. For example, suppose you have the following configuration:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
@Configuration
public class MyConfiguration {

    @Bean
    public StringStore stringStore() {
        return new StringStore();
    }

    @Bean
    public IntegerStore integerStore() {
        return new IntegerStore();
    }

}

Assuming that beans above implement a generic interface, i.e. Store and Store, you can @Autowire the Store interface and the generic will be used as a qualifier:

1
2
3
4
5
@Autowired
private Store<String> s1; // <String> qualifier, injects the stringStore bean

@Autowired
private Store<Integer> s2; // <Integer> qualifier, injects the integerStore bean

可以看到，通过泛型可以 autowired 与之匹配的候选 bean

Generic qualifiers also apply when autowiring Lists, Maps and Arrays:

1
2
3
4
// Inject all Store beans as long as they have an <Integer> generic
// Store<String> beans will not appear in this list
@Autowired
private List<Store<Integer>> s;

【7.9.6】CustomAutowireConfigurer

The CustomAutowireConfigurer is a BeanFactoryPostProcessor that enables you to register your own custom qualifier annotation types even if they are not annotated with Spring’s @Qualifier annotation.

customAutowireConfigurer

1
2
3
4
5
6
7
8
<bean id="customAutowireConfigurer"
        class="org.springframework.beans.factory.annotation.CustomAutowireConfigurer">
    <property name="customQualifierTypes">
        <set>
            <value>example.CustomQualifier</value>
        </set>
    </property>
</bean>

The AutowireCandidateResolver determines autowire candidates by:

AutowireCandidateResolver如何决定注入它的 candidates 的

  • the autowire-candidate value of each bean definition
  • any default-autowire-candidates pattern(s) available on the element
  • the presence of @Qualifier annotations and any custom annotations registered with the CustomAutowireConfigurer

【7.9.7】@Resource

Spring also supports injection using the JSR-250 @Resource annotation on fields or bean property setter methods. This is a common pattern in Java EE 5 and 6, for example in JSF 1.2 managed beans or JAX-WS 2.0 endpoints. Spring supports this pattern for Spring-managed objects as well.

@Resource takes a name attribute, and by default Spring interprets that value as the bean name to be injected. In other words, it follows by-name semantics, as demonstrated in this example:

1
2
3
4
5
6
7
8
9
10
public class SimpleMovieLister {

    private MovieFinder movieFinder;

    @Resource(name="myMovieFinder")
    public void setMovieFinder(MovieFinder movieFinder) {
        this.movieFinder = movieFinder;
    }

}

If no name is specified explicitly, the default name is derived from the field name or setter method; So the following example is going to have the bean with name “movieFinder” injected into its setter method:

1
2
3
4
5
6
7
8
9
10
public class SimpleMovieLister {

    private MovieFinder movieFinder;

    @Resource
    public void setMovieFinder(MovieFinder movieFinder) {
        this.movieFinder = movieFinder;
    }

}

In the exclusive case of @Resource usage with no explicit name specified, and similar to @Autowired, @Resource finds a primary type match instead of a specific named bean and resolves well-known resolvable dependencies: the BeanFactory, ApplicationContext, ResourceLoader, ApplicationEventPublisher, and MessageSource interfaces.

当通过@Resource通过名称找不到对应的 candidates 以后，行为就和@Autowired差不多了，首先通过 type 查找，查找路径为，BeanFactory, ApplicationContext, ResourceLoader, ApplicationEventPublisher, and MessageSource interfaces

例子，

1
2
3
4
5
6
7
8
9
10
11
12
13
14
public class MovieRecommender {

    @Resource
    private CustomerPreferenceDao customerPreferenceDao;

    @Resource
    private ApplicationContext context;

    public MovieRecommender() {
    }

    // ...

}

Thus in the following example, the customerPreferenceDao field first looks for a bean named customerPreferenceDao, then falls back to a primary type match for the type CustomerPreferenceDao. The “context” field is injected based on the known resolvable dependency type ApplicationContext.

【7.9.8】@PostConstruct and @PreDestroy

The CommonAnnotationBeanPostProcessor not only recognizes the @Resourceannotation but also the JSR-250 lifecycle annotations. Introduced in Spring 2.5, the support for these annotations offers yet another alternative to those described in initialization callbacks and destruction callbacks. Provided that the CommonAnnotationBeanPostProcessor is registered within the Spring ApplicationContext, a method carrying one of these annotations is invoked at the same point in the lifecycle as the corresponding Spring lifecycle interface method or explicitly declared callback method. In the example below, the cache will be pre-populated upon initialization and cleared upon destruction.

CommonAnnotationBeanPostProcessor不仅仅可以识别@Resource，同样可以识别生命周期相关的 Annotation，这里指的就是@PostConstruct and @PreDestroy

1
2
3
4
5
6
7
8
9
10
11
12
13
public class CachingMovieLister {

    @PostConstruct
    public void populateMovieCache() {
        // populates the movie cache upon initialization...
    }

    @PreDestroy
    public void clearMovieCache() {
        // clears the movie cache upon destruction...
    }

}

【7.10】Classpath scanning and managed components

This section describes an option for implicitly detecting the candidate components by scanning the classpath. Candidate components are classes that match against a filter criteria and have a corresponding bean definition registered with the container. This removes the need to use XML to perform bean registration; instead you can use annotations (for example @Component), AspectJ type expressions, or your own custom filter criteria to select which classes will have bean definitions registered with the container.

Starting with Spring 3.0, many features provided by the Spring JavaConfig project are part of the core Spring Framework. This allows you to define beans using Java rather than using the traditional XML files. Take a look at the @Configuration, @Bean, @Import, and @DependsOn annotations for examples of how to use these new features.

【7.10.1】@Component and further stereotype annotations

The @Repository annotation is a marker for any class that fulfills the role or stereotype of a repository (also known as Data Access Object or DAO). Among the uses of this marker is the automatic translation of exceptions as described in Section 20.2.2, “Exception translation”.

@Repository注解主要是为 Data Access Object 或者 DAO 提供的注解，使用这种注解将会自动的做相应的异常转换。

Spring provides further stereotype annotations: @Component, @Service, and @Controller. @Component is a generic stereotype for any Spring-managed component.

@Component是一个公共的 stereotype

@Repository, @Service, and @Controller are specializations of @Component for more specific use cases, for example, in the persistence, service, and presentation layers, respectively. Therefore, you can annotate your component classes with @Component, but by annotating them with @Repository, @Service, or @Controller instead, your classes are more properly suited for processing by tools or associating with aspects.

@Repository, @Service, and @Controller是@Component的特殊例子，分别用在 persistence, service, and presentation layers；现在，你也可以使用@Component来统一注解，因为目前针对这些注解没有太多的定制化，但是最佳实践是服务层使用@Service而不是使用@Component，因为将来可能会做定制化的东西。

不过，正如该章节开篇描述的那样，DAO 应该使用 @Repository，因为它针对 DAO 层的异常做了转换。

【7.10.2】Meta-annotations

Many of the annotations provided by Spring can be used as meta-annotations in your own code. A meta-annotation is simply an annotation that can be applied to another annotation. For example, the @Service annotation mentioned above is meta-annotated with @Component:

1
2
3
4
5
6
7
8
@Target(ElementType.TYPE)
@Retention(RetentionPolicy.RUNTIME)
@Documented
@Component // Spring will see this and treat @Service in the same way as @Component
public @interface Service {

    // ....
}

可以将 meta-annotations 理解为 annotation 之间的继承关系吗？

Meta-annotations can also be combined to create composed annotations. For example, the @RestController annotation from Spring MVC is composed of @Controller and @ResponseBody.

Meta-annotations 可以是多个注解的组合，比如@RestController注解就是@Controller和ResponseBody的组合。

In addition, composed annotations may optionally redeclare attributes from meta-annotations to allow user customization. This can be particularly useful when you want to only expose a subset of the meta-annotation’s attributes. For example, Spring’s @SessionScope annotation hardcodes the scope name to session but still allows customization of the proxyMode.

允许用户通过 composed annotations 去重新定义 meta-annotations 的属性；这个对于只想暴露部分 meta-annotation’s 属性非常有意义；比如@SessionScope applied from @Scope，通过@SessionScope暴露出可以自定义的proxyMode，但是 scope name 却被 hard coded 为 session。下面来看看@SessionScope的例子，

1
2
3
4
5
6
7
8
9
10
11
12
13
14
@Target({ElementType.TYPE, ElementType.METHOD})
@Retention(RetentionPolicy.RUNTIME)
@Documented
@Scope(WebApplicationContext.SCOPE_SESSION)
public @interface SessionScope {

    /**
     * Alias for {@link Scope#proxyMode}.
     * <p>Defaults to {@link ScopedProxyMode#TARGET_CLASS}.
     */
    @AliasFor(annotation = Scope.class)
    ScopedProxyMode proxyMode() default ScopedProxyMode.TARGET_CLASS;

}

@SessionScope can then be used without declaring the proxyMode as follows:

1
2
3
4
5
@Service
@SessionScope
public class SessionScopedService {
    // ...
}

Or with an overridden value for the proxyMode as follows:

1
2
3
4
5
@Service
@SessionScope(proxyMode = ScopedProxyMode.INTERFACES)
public class SessionScopedUserService implements UserService {
    // ...
}

For further details, consult the Spring Annotation Programming Model.

【7.10.3】Automatically detecting classes and registering bean definitions

Spring can automatically detect stereotyped classes and register corresponding BeanDefinitions with the ApplicationContext. For example, the following two classes are eligible for such autodetection:

1
2
3
4
5
6
7
8
9
10
11
@Service
public class SimpleMovieLister {

    private MovieFinder movieFinder;

    @Autowired
    public SimpleMovieLister(MovieFinder movieFinder) {
        this.movieFinder = movieFinder;
    }

}
1
2
3
4
@Repository
public class JpaMovieFinder implements MovieFinder {
    // implementation elided for clarity
}

To autodetect these classes and register the corresponding beans, you need to add @ComponentScan to your @Configuration class, where the basePackages attribute is a common parent package for the two classes.

1
2
3
4
5
@Configuration
@ComponentScan(basePackages = "org.example")
public class AppConfig  {
    ...
}

The following is an alternative using XML

1
2
3
4
5
6
7
8
9
10
11
12
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:context="http://www.springframework.org/schema/context"
    xsi:schemaLocation="http://www.springframework.org/schema/beans
        http://www.springframework.org/schema/beans/spring-beans.xsd
        http://www.springframework.org/schema/context
        http://www.springframework.org/schema/context/spring-context.xsd">

    <context:component-scan base-package="org.example"/>

</beans>

The use of context:component-scan implicitly enables the functionality of context:annotation-config. There is usually no need to include the context:annotation-config element when using context:component-scan.

Furthermore, the AutowiredAnnotationBeanPostProcessor and CommonAnnotationBeanPostProcessor are both included implicitly when you use the component-scan element. That means that the two components are autodetected and wired together - all without any bean configuration metadata provided in XML.

You can disable the registration of AutowiredAnnotationBeanPostProcessor and CommonAnnotationBeanPostProcessor by including the annotation-config attribute with a value of false.

diable? 意识就是全部用 XML 的方式进行了。

【7.10.4】Using filters to customize scanning

默认情况下，@Component, @Repository, @Service, @Controller 等都会被自动加载，可以通过 Add them as includeFilters or excludeFilters parameters of the @ComponentScan annotation (or as include-filter or exclude-filter sub-elements of the component-scan element) 的方式过滤。

The following example shows the configuration ignoring all @Repository annotations and using “stub” repositories instead.

1
2
3
4
5
6
7
@Configuration
@ComponentScan(basePackages = "org.example",
        includeFilters = @Filter(type = FilterType.REGEX, pattern = ".*Stub.*Repository"),
        excludeFilters = @Filter(Repository.class))
public class AppConfig {
    ...
}

xml-based

1
2
3
4
5
6
7
8
<beans>
    <context:component-scan base-package="org.example">
        <context:include-filter type="regex"
                expression=".*Stub.*Repository"/>
        <context:exclude-filter type="annotation"
                expression="org.springframework.stereotype.Repository"/>
    </context:component-scan>
</beans>

【7.10.5】Defining bean metadata within components

Spring components can also contribute bean definition metadata to the container. You do this with the same @Bean annotation used to define bean metadata within @Configuration annotated classes. Here is a simple example:

可以类似于用 @Bean 在 @Configuration 声明中的 classes 里面定义一个 bean 一样，可以通过 @Bean 在一个 Component 中定义一个 bean

1
2
3
4
5
6
7
8
9
10
11
12
13
14
@Component
public class FactoryMethodComponent {

    @Bean
    @Qualifier("public")
    public TestBean publicInstance() {
        return new TestBean("publicInstance");
    }

    public void doWork() {
        // Component method implementation omitted
    }

}

Other method level annotations that can be specified are @Scope, @Lazy, and custom qualifier annotations

可以在一个 bean 中再定义另外一个 bean…

【7.10.6】Naming autodetected components

When a component is autodetected as part of the scanning process, its bean name is generated by the BeanNameGenerator strategy known to that scanner.

当在 scanning process 中检测到一个 component，它的 bean name 是通过BeanNameGenerator策略生成的。For example, if the following two components were detected, the names would be myMovieLister and movieFinderImpl:

1
2
3
4
@Service("myMovieLister")
public class SimpleMovieLister {
    // ...
}
1
2
3
4
@Repository
public class MovieFinderImpl implements MovieFinder {
    // ...
}

If you do not want to rely on the default bean-naming strategy, you can provide a custom bean-naming strategy. First, implement the BeanNameGenerator interface, and be sure to include a default no-arg constructor. Then, provide the fully-qualified class name when configuring the scanner:

如果你想自定义 bean-naming strategy，可以通过实现BeanNameGenerator接口实现，

1
2
3
4
5
@Configuration
@ComponentScan(basePackages = "org.example", nameGenerator = MyNameGenerator.class)
public class AppConfig {
    ...
}
1
2
3
4
<beans>
    <context:component-scan base-package="org.example"
        name-generator="org.example.MyNameGenerator" />
</beans>

【7.10.7】Providing a scope for autodetected components

As with Spring-managed components in general, the default and most common scope for autodetected components is singleton. However, sometimes you need a different scope which can be specified via the @Scope annotation. Simply provide the name of the scope within the annotation:

1
2
3
4
5
@Scope("prototype")
@Repository
public class MovieFinderImpl implements MovieFinder {
    // ...
}

For details on web-specific scopes, see Section 7.5.4, “Request, session, global session, application, and WebSocket scopes”.

To provide a custom strategy for scope resolution rather than relying on the annotation-based approach, implement the ScopeMetadataResolver interface, and be sure to include a default no-arg constructor. Then, provide the fully-qualified class name when configuring the scanner:

1
2
3
4
5
@Configuration
@ComponentScan(basePackages = "org.example", scopeResolver = MyScopeResolver.class)
public class AppConfig {
    ...
}
1
2
3
4
<beans>
    <context:component-scan base-package="org.example"
            scope-resolver="org.example.MyScopeResolver" />
</beans>

【7.11】Using JSR 330 Standard Annotations

Starting with Spring 3.0, Spring offers support for JSR-330 standard annotations (Dependency Injection). Those annotations are scanned in the same way as the Spring annotations. You just need to have the relevant jars in your classpath.

[Note]
If you are using Maven, the javax.inject artifact is available in the standard Maven repository ( http://repo1.maven.org/maven2/javax/inject/javax.inject/1/). You can add the following dependency to your file pom.xml:

1
2
3
4
5
<dependency>
    <groupId>javax.inject</groupId>
    <artifactId>javax.inject</artifactId>
    <version>1</version>
</dependency>

【7.11.1】Dependency Injection with @Inject and @Named

Instead of @Autowired, @javax.inject.Inject may be used as follows:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
import javax.inject.Inject;

public class SimpleMovieLister {

    private MovieFinder movieFinder;

    @Inject
    public void setMovieFinder(MovieFinder movieFinder) {
        this.movieFinder = movieFinder;
    }

    public void listMovies() {
        this.movieFinder.findMovies(...);
        ...
    }
}

As with @Autowired, it is possible to use @Inject at the field level, method level and constructor-argument level. If you would like to use a qualified name for the dependency that should be injected, you should use the @Named annotation as follows:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
import javax.inject.Inject;
import javax.inject.Named;

public class SimpleMovieLister {

    private MovieFinder movieFinder;

    @Inject
    public void setMovieFinder(@Named("main") MovieFinder movieFinder) {
        this.movieFinder = movieFinder;
    }

    // ...
}

【7.11.2】@Named and @ManagedBean: standard equivalents to the @Component annotation

Instead of @Component, `@javax.inject.Namedorjavax.annotation.ManagedBean` may be used as follows:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
import javax.inject.Inject;
import javax.inject.Named;

@Named("movieListener") // @ManagedBean("movieListener") could be used as well
public class SimpleMovieLister {

    private MovieFinder movieFinder;

    @Inject
    public void setMovieFinder(MovieFinder movieFinder) {
        this.movieFinder = movieFinder;
    }

    // ...
}

It is very common to use @Component without specifying a name for the component. @Named can be used in a similar fashion:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
import javax.inject.Inject;
import javax.inject.Named;

@Named
public class SimpleMovieLister {

    private MovieFinder movieFinder;

    @Inject
    public void setMovieFinder(MovieFinder movieFinder) {
        this.movieFinder = movieFinder;
    }

    // ...
}

When using @Named or @ManagedBean, it is possible to use component scanning in the exact same way as when using Spring annotations:

1
2
3
4
5
@Configuration
@ComponentScan(basePackages = "org.example")
public class AppConfig  {
    ...
}

In contrast to @Component, the JSR-330 @Named and the JSR-250 ManagedBean annotations are not composable. Please use Spring’s stereotype model for building custom component annotations.

与@Component不同的是，JSR-330所提供的@Named和JSR-250提供的ManageBean注解不可以被组合..

【7.11.3】Limitations of JSR-330 standard annotations

【7.12】Java-based container configuration

【7.12.1】Basic concepts: @Bean and @Configuration

The central artifacts in Spring’s new Java-configuration support are @Configuration-annotated classes and @Bean-annotated methods.

Annotating a class with @Configuration indicates that its primary purpose is as a source of bean definitions. Furthermore, @Configuration classes allow inter-bean dependencies to be defined by simply calling other @Bean methods in the same class. The simplest possible @Configuration class would read as follows:

1
2
3
4
5
6
7
8
9
@Configuration
public class AppConfig {

    @Bean
    public MyService myService() {
        return new MyServiceImpl();
    }

}

The AppConfig class above would be equivalent to the following Spring XML

1
2
3
<beans>
    <bean id="myService" class="com.acme.services.MyServiceImpl"/>
</beans>

Full @Configuration vs 'lite' @Beans mode?

When @Bean methods are declared within classes that are not annotated with @Configuration they are referred to as being processed in a ‘lite’ mode. For example, bean methods declared in a @Component or even in a plain old class will be considered ‘lite’.

这个在[7.10.5] Defining bean metadata within components中有详细的介绍。

【7.12.2】Instantiating the Spring container using AnnotationConfigApplicationContext

Spring’s AnnotationConfigApplicationContext, new in Spring 3.0, it is capable of accepting not only @Configuration classes as input, but also plain @Component classes and classes annotated with JSR-330 metadata.

When @Configuration classes are provided as input, the @Configuration class itself is registered as a bean definition, and all declared @Bean methods within the class are also registered as bean definitions.

When @Component and JSR-330 classes are provided, they are registered as bean definitions, and it is assumed that DI metadata such as @Autowired or @Inject are used within those classes where necessary.

Simple construction

In much the same way that Spring XML files are used as input when instantiating a ClassPathXmlApplicationContext, @Configuration classes may be used as input when instantiating an AnnotationConfigApplicationContext. This allows for completely XML-free usage of the Spring container:

通过 @Configuration 的初始化方式与 XML 的初始化方式雷同，如下，

1
2
3
4
5
public static void main(String[] args) {
    ApplicationContext ctx = new AnnotationConfigApplicationContext(AppConfig.class);
    MyService myService = ctx.getBean(MyService.class);
    myService.doStuff();
}

AppConfig.class实现了@Configuration注解，

As mentioned above, AnnotationConfigApplicationContext is not limited to working only with @Configuration classes. Any @Component or JSR-330 annotated class may be supplied as input to the constructor. For example:

1
2
3
4
5
public static void main(String[] args) {
    ApplicationContext ctx = new AnnotationConfigApplicationContext(MyServiceImpl.class, Dependency1.class, Dependency2.class);
    MyService myService = ctx.getBean(MyService.class);
    myService.doStuff();
}

The above assumes that MyServiceImpl, Dependency1 and Dependency2 use Spring dependency injection annotations such as @Autowired.

Building the container programmatically using register(Class<?>…​)

An AnnotationConfigApplicationContext may be instantiated using a no-arg constructor and then configured using the register() method.

1
2
3
4
5
6
7
8
public static void main(String[] args) {
    AnnotationConfigApplicationContext ctx = new AnnotationConfigApplicationContext();
    ctx.register(AppConfig.class, OtherConfig.class);
    ctx.register(AdditionalConfig.class);
    ctx.refresh();
    MyService myService = ctx.getBean(MyService.class);
    myService.doStuff();
}
Enabling component scanning with scan(String…​)

To enable component scanning, just annotate your @Configuration class as follows:

1
2
3
4
5
@Configuration
@ComponentScan(basePackages = "com.acme")
public class AppConfig  {
    ...
}

等价于

Experienced Spring users will be familiar with the XML declaration equivalent from Spring’s context: namespace

1
2
3
<beans>
    <context:component-scan base-package="com.acme"/>
</beans>

写程序的方式，

AnnotationConfigApplicationContext exposes the scan(String…​) method to allow for the same component-scanning functionality:

1
2
3
4
5
6
public static void main(String[] args) {
    AnnotationConfigApplicationContext ctx = new AnnotationConfigApplicationContext();
    ctx.scan("com.acme");
    ctx.refresh();
    MyService myService = ctx.getBean(MyService.class);
}

Remember that @Configuration classes are meta-annotated with @Component, so they are candidates for component-scanning! In the example above, assuming that AppConfig is declared within the com.acme package (or any package underneath), it will be picked up during the call to scan(), and upon refresh() all its @Bean methods will be processed and registered as bean definitions within the container.

这段解释了如何通过 @Configuration 和 @Bean 实现 bean 的注入的。

Support for web applications with AnnotationConfigWebApplicationContext

AnnotationConfigWebApplicationContext

This implementation may be used when configuring the Spring ContextLoaderListener servlet listener, Spring MVC DispatcherServlet, etc. What follows is a web.xml snippet that configures a typical Spring MVC web application. Note the use of the contextClass context-param and init-param:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
<web-app>
    <!-- Configure ContextLoaderListener to use AnnotationConfigWebApplicationContext
        instead of the default XmlWebApplicationContext -->
    <context-param>
        <param-name>contextClass</param-name>
        <param-value>
            org.springframework.web.context.support.AnnotationConfigWebApplicationContext
        </param-value>
    </context-param>

    <!-- Configuration locations must consist of one or more comma- or space-delimited
        fully-qualified @Configuration classes. Fully-qualified packages may also be
        specified for component-scanning -->
    <context-param>
        <param-name>contextConfigLocation</param-name>
        <param-value>com.acme.AppConfig</param-value>
    </context-param>

    <!-- Bootstrap the root application context as usual using ContextLoaderListener -->
    <listener>
        <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
    </listener>

    <!-- Declare a Spring MVC DispatcherServlet as usual -->
    <servlet>
        <servlet-name>dispatcher</servlet-name>
        <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
        <!-- Configure DispatcherServlet to use AnnotationConfigWebApplicationContext
            instead of the default XmlWebApplicationContext -->
        <init-param>
            <param-name>contextClass</param-name>
            <param-value>
                org.springframework.web.context.support.AnnotationConfigWebApplicationContext
            </param-value>
        </init-param>
        <!-- Again, config locations must consist of one or more comma- or space-delimited
            and fully-qualified @Configuration classes -->
        <init-param>
            <param-name>contextConfigLocation</param-name>
            <param-value>com.acme.web.MvcConfig</param-value>
        </init-param>
    </servlet>

    <!-- map all requests for /app/* to the dispatcher servlet -->
    <servlet-mapping>
        <servlet-name>dispatcher</servlet-name>
        <url-pattern>/app/*</url-pattern>
    </servlet-mapping>
</web-app>

【7.12.3】Using the @Bean annotation

@Bean is a method-level annotation and a direct analog of the XML <bean/> element. The annotation supports some of the attributes offered by <bean/>, such as: init-method, destroy-method, autowiring and name.

You can use the @Bean annotation in a @Configuration-annotated or in a @Component-annotated class.

Declaring a bean

To declare a bean, simply annotate a method with the @Bean annotation. You use this method to register a bean definition within an ApplicationContext of the type specified as the method’s return value. By default, the bean name will be the same as the method name. The following is a simple example of a @Bean method declaration:

1
2
3
4
5
6
7
8
9
@Configuration
public class AppConfig {

    @Bean
    public TransferService transferService() {
        return new TransferServiceImpl();
    }

}

The preceding configuration is exactly equivalent to the following Spring XML:

1
2
3
<beans>
    <bean id="transferService" class="com.acme.TransferServiceImpl"/>
</beans>

Both declarations make a bean named transferService available in the ApplicationContext, bound to an object instance of type TransferServiceImpl:

1
transferService -> com.acme.TransferServiceImpl

我的疑问是，@Service不也是做的类似的事情？为什么还要有 @Bean？

Bean dependencies

A @Bean annotated method can have an arbitrary number of parameters describing the dependencies required to build that bean. For instance if our TransferService requires an AccountRepository we can materialize that dependency via a method parameter:

由@Bean所注解的方法可以通过其参数来描述其所依赖的 bean；

1
2
3
4
5
6
7
8
9
@Configuration
public class AppConfig {

    @Bean
    public TransferService transferService(AccountRepository accountRepository) {
        return new TransferServiceImpl(accountRepository);
    }

}
Receiving lifecycle callbacks

The regular Spring lifecycle callbacks are fully supported as well. If a bean implements InitializingBean, DisposableBean, or Lifecycle, their respective methods are called by the container.

The standard set of *Aware interfaces such as BeanFactoryAware, BeanNameAware, MessageSourceAware, ApplicationContextAware, and so on are also fully supported.

The @Bean annotation supports specifying arbitrary initialization and destruction callback methods, much like Spring XML’s init-method and destroy-method attributes on the bean element:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
public class Foo {
    public void init() {
        // initialization logic
    }
}

public class Bar {
    public void cleanup() {
        // destruction logic
    }
}

@Configuration
public class AppConfig {

    @Bean(initMethod = "init")
    public Foo foo() {
        return new Foo();
    }

    @Bean(destroyMethod = "cleanup")
    public Bar bar() {
        return new Bar();
    }

}

By default, beans defined using Java config that have a public close or shutdown method are automatically enlisted with a destruction callback. If you have a public close or shutdown method and you do not wish for it to be called when the container shuts down, simply add @Bean(destroyMethod="") to your bean definition to disable the default (inferred) mode.

默认的，通过Java config注入的 bean 会默认的注入一个 public close or shutdown method，如果不想使用它们 simply add @Bean(destroyMethod="") to your bean definition

You may want to do that by default for a resource that you acquire via JNDI as its lifecycle is managed outside the application. In particular, make sure to always do it for a DataSource as it is known to be problematic on Java EE application servers.

特别的，当你使用 JNDI 的方式注入一个 bean，它的生命周期是在容器之外被管理的，特别的，当使用 JNDI 加载一个DataSource的时候，一定记得 disable 掉自动的close和shutdown。

1
2
3
4
@Bean(destroyMethod="")
public DataSource dataSource() throws NamingException {
    return (DataSource) jndiTemplate.lookup("MyDS");
}
Specifying bean scope
Using the @Scope annotation
1
2
3
4
5
6
7
8
9
10
@Configuration
public class MyConfiguration {

    @Bean
    @Scope("prototype")
    public Encryptor encryptor() {
        // ...
    }

}
@Scope and scoped-proxy

Spring offers a convenient way of working with scoped dependencies through scoped proxies.

1
2
3
4
5
6
7
8
9
10
11
12
13
@Bean
@SessionScope
public UserPreferences userPreferences() {
    return new UserPreferences();
}

@Bean
public Service userService() {
    UserService service = new SimpleUserService();
    // a reference to the proxied userPreferences bean
    service.setUserPreferences(userPreferences());
    return service;
}
Customizing bean naming
1
2
3
4
5
6
7
8
9
@Configuration
public class AppConfig {

    @Bean(name = "myFoo")
    public Foo foo() {
        return new Foo();
    }

}
Bean aliasing
1
2
3
4
5
6
7
8
9
@Configuration
public class AppConfig {

    @Bean(name = { "dataSource", "subsystemA-dataSource", "subsystemB-dataSource" })
    public DataSource dataSource() {
        // instantiate, configure and return DataSource bean...
    }

}
Bean description
1
2
3
4
5
6
7
8
9
10
@Configuration
public class AppConfig {

    @Bean
    @Description("Provides a basic example of a bean")
    public Foo foo() {
        return new Foo();
    }

}

【7.12.4】Using the @Configuration annotation

@Configuration is a class-level annotation indicating that an object is a source of bean definitions. @Configuration classes declare beans via public @Bean annotated methods. Calls to @Bean methods on @Configuration classes can also be used to define inter-bean dependencies.

Injecting inter-bean dependencies

When @Beans have dependencies on one another, expressing that dependency is as simple as having one bean method call another:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
@Configuration
public class AppConfig {

    @Bean
    public Foo foo() {
        return new Foo(bar());
    }

    @Bean
    public Bar bar() {
        return new Bar();
    }

}

In the example above, the foo bean receives a reference to bar via constructor injection.

Lookup method injection

正如前面Method Injection介绍的那样，当一个单例模式需要引用一个非单例模式的类的时候，需要通过一个 Abstract 方法借助 CGLIB 的方式来实现，通过 Java-configuration 的方式，you can create a subclass of CommandManager where the abstract createCommand() method is overridden in such a way that it looks up a new (prototype) command object:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
@Bean
@Scope("prototype")
public AsyncCommand asyncCommand() {
    AsyncCommand command = new AsyncCommand();
    // inject dependencies here as required
    return command;
}

@Bean
public CommandManager commandManager() {
    // return new anonymous implementation of CommandManager with command() overridden
    // to return a new prototype Command object
    return new CommandManager() {
        protected Command createCommand() {
            return asyncCommand();
        }
    }
}
Further information about how Java-based configuration works internally
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
@Configuration
public class AppConfig {

    @Bean
    public ClientService clientService1() {
        ClientServiceImpl clientService = new ClientServiceImpl();
        clientService.setClientDao(clientDao());
        return clientService;
    }

    @Bean
    public ClientService clientService2() {
        ClientServiceImpl clientService = new ClientServiceImpl();
        clientService.setClientDao(clientDao());
        return clientService;
    }

    @Bean
    public ClientDao clientDao() {
        return new ClientDaoImpl();
    }

}

clientDao() 将会被调用两次，或许你会认为每次调用会生成一个新的 DAO，但是，却没有，因为 ClientDAO 在 Spring 容器中是单例模式的；那么 Spring 容器是如何做到的呢？

All @Configuration classes are subclassed at startup-time with CGLIB. In the subclass, the child method checks the container first for any cached (scoped) beans before it calls the parent method and creates a new instance.

在容器初始化的时候，所有的@Configuration的类都会通过CGLIB生成相应的子类；当初始化实例的时候，子类的初始化方法会检查缓存(Cached beans)是否已经生成了相应的 bean 实例，如果已经创建，则不会重复创建。看来秘密还是在 CGLIB…

Note that as of Spring 3.2, it is no longer necessary to add CGLIB to your classpath because CGLIB classes have been repackaged under org.springframework.cglib and included directly within the spring-core JAR.

【7.12.5】 Composing Java-based configurations

Using the @Import annotation

Much as the element is used within Spring XML files to aid in modularizing configurations, the @Import annotation allows for loading @Bean definitions from another configuration class:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
@Configuration
public class ConfigA {

     @Bean
    public A a() {
        return new A();
    }

}

@Configuration
@Import(ConfigA.class)
public class ConfigB {

    @Bean
    public B b() {
        return new B();
    }

}

Now, rather than needing to specify both ConfigA.class and ConfigB.class when instantiating the context, only ConfigB needs to be supplied explicitly:

1
2
3
4
5
6
7
public static void main(String[] args) {
    ApplicationContext ctx = new AnnotationConfigApplicationContext(ConfigB.class);

    // now both beans A and B will be available...
    A a = ctx.getBean(A.class);
    B b = ctx.getBean(B.class);
}

This approach simplifies container instantiation, as only one class needs to be dealt with, rather than requiring the developer to remember a potentially large number of @Configuration classes during construction.

Injecting dependencies on imported @Bean definitions

The example above works, but is simplistic. In most practical scenarios, beans will have dependencies on one another across configuration classes. when using @Configuration classes, the Java compiler places constraints on the configuration model, in that references to other beans must be valid Java syntax.

XML-centric use of @Configuration classes

Remember that @Configuration classes are ultimately just bean definitions in the container. In this example, we create a @Configuration class named AppConfig and include it within system-test-config.xml as a <bean/> definition.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
@Configuration
public class AppConfig {

    @Autowired
    private DataSource dataSource;

    @Bean
    public AccountRepository accountRepository() {
        return new JdbcAccountRepository(dataSource);
    }

    @Bean
    public TransferService transferService() {
        return new TransferService(accountRepository());
    }

}

system-test-config.xml:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
<beans>
    <!-- enable processing of annotations such as @Autowired and @Configuration -->
    <context:annotation-config/>
    <context:property-placeholder location="classpath:/com/acme/jdbc.properties"/>

    <!-- 既然 annotation-config 会自动解析 @Configuration 并加载 bean，那为什么这里还要显示的声明？ 答案是没有使用 component-scan -->
    <bean class="com.acme.AppConfig"/>

    <bean class="org.springframework.jdbc.datasource.DriverManagerDataSource">
        <property name="url" value="${jdbc.url}"/>
        <property name="username" value="${jdbc.username}"/>
        <property name="password" value="${jdbc.password}"/>
    </bean>
</beans>

jdbc.properties:

1
2
3
jdbc.url=jdbc:hsqldb:hsql://localhost/xdb
jdbc.username=sa
jdbc.password=
1
2
3
4
5
public static void main(String[] args) {
    ApplicationContext ctx = new ClassPathXmlApplicationContext("classpath:/com/acme/system-test-config.xml");
    TransferService transferService = ctx.getBean(TransferService.class);
    // ...
}

Because @Configuration is meta-annotated with @Component, @Configuration-annotated classes are automatically candidates for component scanning. Using the same scenario as above, we can redefine system-test-config.xml to take advantage of component-scanning. Note that in this case, we don’t need to explicitly declare <context:annotation-config/>, because <context:component-scan/> enables the same functionality.

system-test-config.xml:

1
2
3
4
5
6
7
8
9
10
11
<beans>
    <!-- picks up and registers AppConfig as a bean definition -->
    <context:component-scan base-package="com.acme"/>
    <context:property-placeholder location="classpath:/com/acme/jdbc.properties"/>

    <bean class="org.springframework.jdbc.datasource.DriverManagerDataSource">
        <property name="url" value="${jdbc.url}"/>
        <property name="username" value="${jdbc.username}"/>
        <property name="password" value="${jdbc.password}"/>
    </bean>
</beans>
@Configuration class-centric use of XML with @ImportResource

In applications where @Configuration classes are the primary mechanism for configuring the container, it will still likely be necessary to use at least some XML. In these scenarios, simply use @ImportResource and define only as much XML as is needed. Doing so achieves a “Java-centric” approach to configuring the container and keeps XML to a bare minimum.

哼哼，从上面的描述看来@Configuration是发展趋势了，以后 Spring 都会朝着这个方向去发展了，可惜，我直到现在都没有用过… 可以通过Configuration classes 使用@ImportResource注解来定义所需要的 XML 配置；

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
@Configuration
@ImportResource("classpath:/com/acme/properties-config.xml")
public class AppConfig {

    @Value("${jdbc.url}")
    private String url;

    @Value("${jdbc.username}")
    private String username;

    @Value("${jdbc.password}")
    private String password;

    @Bean
    public DataSource dataSource() {
        return new DriverManagerDataSource(url, username, password);
    }

}

properties-config.xml

1
2
3
<beans>
    <context:property-placeholder location="classpath:/com/acme/jdbc.properties"/>
</beans>
1
2
3
4
jdbc.properties
jdbc.url=jdbc:hsqldb:hsql://localhost/xdb
jdbc.username=sa
jdbc.password=
1
2
3
4
5
public static void main(String[] args) {
    ApplicationContext ctx = new AnnotationConfigApplicationContext(AppConfig.class);
    TransferService transferService = ctx.getBean(TransferService.class);
    // ...
}

【7.13】 Environment abstraction

The Environment is an abstraction integrated in the container that models two key aspects of the application environment: profiles and properties.

A profile is a named, logical group of bean definitions to be registered with the container only if the given profile is active. The role of the Environment object with relation to profiles is in determining which profiles (if any) are currently active, and which profiles (if any) should be active by default.

Properties play an important role in almost all applications, and may originate from a variety of sources: properties files, JVM system properties, system environment variables, JNDI, servlet context parameters, ad-hoc Properties objects, Maps, and so on. The role of the Environment object with relation to properties is to provide the user with a convenient service interface for configuring property sources and resolving properties from them.

【7.13.1】Bean definition profiles

Bean definition profiles is a mechanism in the core container that allows for registration of different beans in different environments. includings

  • working against an in-memory datasource in development vs looking up that same datasource from JNDI when in QA or production
  • registering monitoring infrastructure only when deploying an application into a performance environment
  • registering customized implementations of beans for customer A vs. customer B deployments

Let’s consider the first use case in a practical application that requires a DataSource. In a test environment, the configuration may look like this:

1
2
3
4
5
6
7
8
@Bean
public DataSource dataSource() {
    return new EmbeddedDatabaseBuilder()
        .setType(EmbeddedDatabaseType.HSQL)
        .addScript("my-schema.sql")
        .addScript("my-test-data.sql")
        .build();
}

Let’s now consider how this application will be deployed into a QA or production environment, assuming that the datasource for the application will be registered with the production application server’s JNDI directory. Our dataSource bean now looks like this:

1
2
3
4
5
@Bean(destroyMethod="")
public DataSource dataSource() throws Exception {
    Context ctx = new InitialContext();
    return (DataSource) ctx.lookup("java:comp/env/jdbc/datasource");
}

The problem is how to switch between using these two variations based on the current environment

@Profile

The @Profile annotation allows you to indicate that a component is eligible for registration when one or more specified profiles are active. Using our example above, we can rewrite the dataSource configuration as follows:

  1. 定义在 class level

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    @Configuration
    @Profile("dev")
    public class StandaloneDataConfig {

        @Bean
        public DataSource dataSource() {
            return new EmbeddedDatabaseBuilder()
                .setType(EmbeddedDatabaseType.HSQL)
                .addScript("classpath:com/bank/config/sql/schema.sql")
                .addScript("classpath:com/bank/config/sql/test-data.sql")
                .build();
        }
    }
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    @Configuration
    @Profile("production")
    public class JndiDataConfig {

        @Bean(destroyMethod="")
        public DataSource dataSource() throws Exception {
            Context ctx = new InitialContext();
            return (DataSource) ctx.lookup("java:comp/env/jdbc/datasource");
        }
    }

  2. @Profile can be used as a meta-annotation for the purpose of creating a custom composed annotation. The following example defines a custom @Production annotation that can be used as a drop-in replacement for @Profile("production"):

    1
    2
    3
    4
    5
    @Target(ElementType.TYPE)
    @Retention(RetentionPolicy.RUNTIME)
    @Profile("production")
    public @interface Production {
    }

    这样可以使用@Production来替换@Profile("production")

  3. @Profile can also be declared at the method level to include only one particular bean of a configuration class:
    也可以使用再方法级别；

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    @Configuration
    public class AppConfig {

        @Bean
        @Profile("dev")
        public DataSource devDataSource() {
            return new EmbeddedDatabaseBuilder()
                .setType(EmbeddedDatabaseType.HSQL)
                .addScript("classpath:com/bank/config/sql/schema.sql")
                .addScript("classpath:com/bank/config/sql/test-data.sql")
                .build();
        }

        @Bean
        @Profile("production")
        public DataSource productionDataSource() throws Exception {
            Context ctx = new InitialContext();
            return (DataSource) ctx.lookup("java:comp/env/jdbc/datasource");
        }
    }

通过 @Configuration 的方式定义 Profile 好简单。

XML bean definition profiles

The XML counterpart is the profile attribute of the element.
Our sample configuration above can be rewritten

  1. in two XML files as follows:

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    <beans profile="dev"
        xmlns="http://www.springframework.org/schema/beans"
        xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
        xmlns:jdbc="http://www.springframework.org/schema/jdbc"
        xsi:schemaLocation="...">

        <jdbc:embedded-database id="dataSource">
            <jdbc:script location="classpath:com/bank/config/sql/schema.sql"/>
            <jdbc:script location="classpath:com/bank/config/sql/test-data.sql"/>
        </jdbc:embedded-database>
    </beans>
    1
    2
    3
    4
    5
    6
    7
    8
    <beans profile="production"
        xmlns="http://www.springframework.org/schema/beans"
        xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
        xmlns:jee="http://www.springframework.org/schema/jee"
        xsi:schemaLocation="...">

        <jee:jndi-lookup id="dataSource" jndi-name="java:comp/env/jdbc/datasource"/>
    </beans>

  2. within the same file:

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    <beans xmlns="http://www.springframework.org/schema/beans"
        xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
        xmlns:jdbc="http://www.springframework.org/schema/jdbc"
        xmlns:jee="http://www.springframework.org/schema/jee"
        xsi:schemaLocation="...">

        <!-- other bean definitions -->

        <beans profile="dev">
            <jdbc:embedded-database id="dataSource">
                <jdbc:script location="classpath:com/bank/config/sql/schema.sql"/>
                <jdbc:script location="classpath:com/bank/config/sql/test-data.sql"/>
            </jdbc:embedded-database>
        </beans>

        <beans profile="production">
            <jee:jndi-lookup id="dataSource" jndi-name="java:comp/env/jdbc/datasource"/>
        </beans>
    </beans>
Activating a profile

If we started our sample application right now, we would see a NoSuchBeanDefinitionException thrown, because the container could not find the Spring bean named dataSource.

Activating a profile can be done in several ways,

  1. but the most straightforward is to do it programmatically against the Environment API which is available via an ApplicationContext:

    1
    2
    3
    4
    AnnotationConfigApplicationContext ctx = new AnnotationConfigApplicationContext();
    ctx.getEnvironment().setActiveProfiles("dev");
    ctx.register(SomeConfig.class, StandaloneDataConfig.class, JndiDataConfig.class);
    ctx.refresh();

  2. profiles may also be activated declaratively through the spring.profiles.active property which may be specified through system environment variables, JVM system properties, servlet context parameters in web.xml, or even as an entry in JNDI (see Section 7.13.3, “PropertySource abstraction”)

  3. In integration tests, active profiles can be declared via the @ActiveProfiles annotation in the spring-test module (see the section called “Context configuration with environment profiles”).

Note that profiles are not an “either-or” proposition; 注意，profiles 不是 “either-or” 的关系，而是 “And” 的关系，我们可以同时加载几个 Profiles

1
ctx.getEnvironment().setActiveProfiles("profile1", "profile2");

Declaratively, spring.profiles.active may accept a comma-separated list of profile names:

1
-Dspring.profiles.active="profile1,profile2"
Default profile
1
2
3
4
5
6
7
8
9
10
11
12
@Configuration
@Profile("default")
public class DefaultDataConfig {

    @Bean
    public DataSource dataSource() {
        return new EmbeddedDatabaseBuilder()
            .setType(EmbeddedDatabaseType.HSQL)
            .addScript("classpath:com/bank/config/sql/schema.sql")
            .build();
    }
}

If no profile is active, the dataSource above will be created
If any profile is enabled, the default profile will not apply.

【7.13.3】PropertySource abstraction

Spring’s Environment abstraction provides search operations over a configurable hierarchy of property sources. To explain fully, consider the following:

1
2
3
4
ApplicationContext ctx = new GenericApplicationContext();
Environment env = ctx.getEnvironment();
boolean containsFoo = env.containsProperty("foo");
System.out.println("Does my environment contain the 'foo' property? " + containsFoo);

asking Spring whether the foo property is defined for the current environment. To answer this question, the Environment object performs a search over a set of PropertySource objects.

Environment将会从一系列的PropertySource对象中去查找。

A PropertySource is a simple abstraction over any source of key-value pairs, and Spring’s StandardEnvironment is configured with two PropertySource objects — one representing the set of JVM system properties (a la System.getProperties()) and one representing the set of system environment variables (a la System.getenv()).

a PropertySource 是一个简单的键值对，StandardEnvironment 包含两个 PropertySource 对象… 类似的有，

StandardServletEnvironment is populated with additional default property sources including servlet config and servlet context parameters.

StandardPortletEnvironment similarly has access to portlet config and portlet context parameters as property sources

Both can optionally enable a JndiPropertySource.

Concretely, when using the StandardEnvironment, the call to env.containsProperty("foo") will return true if a foo system property or foo environment variable is present at runtime.

Most importantly, the entire mechanism is configurable. Perhaps you have a custom source of properties that you’d like to integrate into this search，没问题，你可以将你自己的 PropertySource set into the current Environment:

1
2
3
ConfigurableApplicationContext ctx = new GenericApplicationContext();
MutablePropertySources sources = ctx.getEnvironment().getPropertySources();
sources.addFirst(new MyPropertySource());

【7.13.4】@PropertySource

The @PropertySource annotation provides a convenient and declarative mechanism for adding a PropertySource to Spring’s Environment.

Given a file “app.properties” containing the key/value pair testbean.name=myTestBean, the following @Configuration class uses @PropertySource in such a way that a call to testBean.getName() will return “myTestBean”.

1
2
3
4
5
6
7
8
9
10
11
12
13
@Configuration
@PropertySource("classpath:/com/myco/app.properties")
public class AppConfig {
    @Autowired
    Environment env;

    @Bean
    public TestBean testBean() {
        TestBean testBean = new TestBean();
        testBean.setName(env.getProperty("testbean.name"));
        return testBean;
    }
}

【7.14】Registering a LoadTimeWeaver

The LoadTimeWeaver is used by Spring to dynamically transform classes as they are loaded into the Java virtual machine (JVM).

To enable load-time weaving add the @EnableLoadTimeWeaving to one of your @Configuration classes:

1
2
3
4
5
@Configuration
@EnableLoadTimeWeaving
public class AppConfig {

}

Alternatively for XML configuration use the context:load-time-weaver element:

1
2
3
<beans>
    <context:load-time-weaver/>
</beans>

This is particularly useful in combination with Spring’s JPA support where load-time weaving may be necessary for JPA class transformation. Consult the LocalContainerEntityManagerFactoryBean javadocs for more detail. For more on AspectJ load-time weaving, see Section 11.8.4, “Load-time weaving with AspectJ in the Spring Framework”.

【7.15】Additional Capabilities of the ApplicationContext

the org.springframework.beans.factory package provides basic functionality for managing and manipulating beans, including in a programmatic way. The org.springframework.context package adds the ApplicationContext interface, which extends the BeanFactory interface, in addition to extending other interfaces to provide additional functionality in a more a_pplication framework-oriented style_

Many people use the ApplicationContext in a completely declarative fashion, not even creating it programmatically, but instead relying on support classes such as ContextLoader to automatically instantiate an ApplicationContext as part of the normal startup process of a Java EE web application.

【7.15.1】Internationalization using MessageSource

The ApplicationContext interface extends an interface called MessageSource, and therefore provides internationalization (i18n) functionality. Spring also provides the interface HierarchicalMessageSource, which can resolve messages hierarchically.

  • String getMessage(String code, Object[] args, String default, Locale loc): The basic method used to retrieve a message from the MessageSource. When no message is found for the specified locale, the default message is used. Any arguments passed in become replacement values, using the MessageFormat functionality provided by the standard library.
  • String getMessage(String code, Object[] args, Locale loc): Essentially the same as the previous method, but with one difference: no default message can be specified; if the message cannot be found, a NoSuchMessageException is thrown.
  • String getMessage(MessageSourceResolvable resolvable, Locale locale):

如何寻找 MessageSource

When an ApplicationContext is loaded, it automatically searches for a MessageSource bean defined in the context. The bean must have the name messageSource. If such a bean is found, all calls to the preceding methods are delegated to the message source. If _no_ message source is found, the ApplicationContext attempts to find a parent containing a bean with the same name. If it does, it uses that bean as the MessageSource. If the ApplicationContext cannot find any source for messages, an empty DelegatingMessageSource is instantiated in order to be able to accept calls to the methods defined above.

ResourceBundleMessageSource and StaticMessageSource

Spring provides two MessageSource implementations, ResourceBundleMessageSource and StaticMessageSource. Both implement HierarchicalMessageSource in order to do nested messaging. The StaticMessageSource is rarely used but provides programmatic ways to add messages to the source. The ResourceBundleMessageSource is shown in the following example,

1
2
3
4
5
6
7
8
9
10
11
12
<beans>
    <bean id="messageSource"
            class="org.springframework.context.support.ResourceBundleMessageSource">
        <property name="basenames">
            <list>
                <value>format</value>
                <value>exceptions</value>
                <value>windows</value>
            </list>
        </property>
    </bean>
</beans>

In the example it is assumed you have three resource bundles defined in your classpath called format, exceptions and windows，

1
2
# in format.properties
message=Alligators rock!
1
2
# in exceptions.properties
argument.required=The {0} argument is required.
1
2
3
4
5
public static void main(String[] args) {
    MessageSource resources = new ClassPathXmlApplicationContext("beans.xml");
    String message = resources.getMessage("message", null, "Default", null);
    System.out.println(message);
}

The resulting output from the above program will be…​

1
Alligators rock!

So to summarize, the MessageSource is defined in a file called beans.xml, which exists at the root of your classpath. The messageSource bean definition refers to a number of resource bundles through its basenames property. The three files that are passed in the list to the basenames property exist as files at the root of your classpath and are called format.properties, exceptions.properties, and windows.properties respectively.

The next example shows arguments passed to the message lookup; these arguments will be converted into Strings and inserted into placeholders in the lookup message.

1
2
3
4
5
6
7
8
9
10
11
12
13
<beans>

    <!-- this MessageSource is being used in a web application -->
    <bean id="messageSource" class="org.springframework.context.support.ResourceBundleMessageSource">
        <property name="basename" value="exceptions"/>
    </bean>

    <!-- lets inject the above MessageSource into this POJO -->
    <bean id="example" class="com.foo.Example">
        <property name="messages" ref="messageSource"/>
    </bean>

</beans>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
public class Example {

    private MessageSource messages;

    public void setMessages(MessageSource messages) {
        this.messages = messages;
    }

    public void execute() {
        String message = this.messages.getMessage("argument.required",
            new Object [] {"userDao"}, "Required", null);
        System.out.println(message);
    }

}

With regard to internationalization (i18n), Spring’s various MessageSource implementations follow the same locale resolution and fallback rules as the standard JDK ResourceBundle. In short, and continuing with the example messageSource defined previously, if you want to resolve messages against the British (en-GB) locale, you would create files called format_en_GB.properties, exceptions_en_GB.properties, and windows_en_GB.properties respectively.

1
2
# in exceptions_en_GB.properties
argument.required=Ebagum lad, the {0} argument is required, I say, required.
1
2
3
4
5
6
public static void main(final String[] args) {
    MessageSource resources = new ClassPathXmlApplicationContext("beans.xml");
    String message = resources.getMessage("argument.required",
        new Object [] {"userDao"}, "Required", Locale.UK);
    System.out.println(message);
}

You can also use the MessageSourceAware interface to acquire a reference to any MessageSource that has been defined

As an alternative to ResourceBundleMessageSource, Spring provides a ReloadableResourceBundleMessageSource class. This variant supports the same bundle file format but is more flexible than the standard JDK based ResourceBundleMessageSource implementation.

【7.15.2】Standard and Custom Events

Event handling in the ApplicationContext is provided through the ApplicationEvent class and ApplicationListener interface
If a bean that implements the ApplicationListener interface is deployed into the context, every time an ApplicationEvent gets published to the ApplicationContext, that bean is notified.
Essentially, this is the standard Observer design pattern.

Table 7.7. Built-in Events

ContextRefreshedEvent，ContextStartedEvent，ContextStoppedEvent，ContextClosedEvent，RequestHandledEvent

You can also create and publish your own custom events. This example demonstrates a simple class that extends Spring’s ApplicationEvent base class:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
public class BlackListEvent extends ApplicationEvent {

    private final String address;
    private final String test;

    public BlackListEvent(Object source, String address, String test) {
        super(source);
        this.address = address;
        this.test = test;
    }

    // accessor and other methods...

}

To publish a custom ApplicationEvent, call the publishEvent() method on an ApplicationEventPublisher. Typically this is done by creating a class that implements ApplicationEventPublisherAware and registering it as a Spring bean. The following example demonstrates such a class:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
public class EmailService implements ApplicationEventPublisherAware {

    private List<String> blackList;
    private ApplicationEventPublisher publisher;

    public void setBlackList(List<String> blackList) {
        this.blackList = blackList;
    }

    public void setApplicationEventPublisher(ApplicationEventPublisher publisher) {
        this.publisher = publisher;
    }

    public void sendEmail(String address, String text) {
        if (blackList.contains(address)) {
            BlackListEvent event = new BlackListEvent(this, address, text); // 创建事件
            publisher.publishEvent(event); // 发布事件，这样，监听者可以获得该事件
            return;
        }
        // send email...
    }

}

At configuration time, the Spring container will detect that EmailService implements ApplicationEventPublisherAware and will automatically call setApplicationEventPublisher(). In reality, the parameter passed in will be the Spring container itself; you’re simply interacting with the application context via its ApplicationEventPublisher interface.

上面这个实例的意思是，当我要在发送邮件的时候，需要做一个判断，看当前的邮件地址是不是在黑名单中，如果是在黑名单当中，则通过ApplicationEventPublisherAware发送事件，然后由后面的BlackListNotifier捕获该事件并进行处理。

To receive the custom ApplicationEvent, create a class that implements ApplicationListener and register it as a Spring bean. The following example demonstrates such a class:

1
2
3
4
5
6
7
8
9
10
11
12
13
public class BlackListNotifier implements ApplicationListener<BlackListEvent> {

    private String notificationAddress;

    public void setNotificationAddress(String notificationAddress) {
        this.notificationAddress = notificationAddress;
    }

    public void onApplicationEvent(BlackListEvent event) {
        // notify appropriate parties via notificationAddress...
    }

}

You may register as many event listeners as you wish, but note that by default event listeners receive events synchronously，This means the · method blocks until all listeners have finished processing the event.

One advantage of this synchronous and single-threaded approach is that when a listener receives an event, it operates inside the transaction context of the publisher if a transaction context is available.

为什么处理事件要设置为同步模式，好处是，处理事件的 handler 可以与 publisher 在同一个事务当中，一旦 handler 失败，那么可以回滚，保证事件是可以重新发送的。

If another strategy for event publication becomes necessary, refer to the JavaDoc for Spring’s ApplicationEventMulticaster interface.

ApplicationEventMulticaster可以同时发送多个事件

1
2
3
4
5
6
7
8
9
10
11
12
13
<bean id="emailService" class="example.EmailService">
    <property name="blackList">
        <list>
            <value>known.spammer@example.org</value>
            <value>known.hacker@example.org</value>
            <value>john.doe@example.org</value>
        </list>
    </property>
</bean>

<bean id="blackListNotifier" class="example.BlackListNotifier">
    <property name="notificationAddress" value="blacklist@example.org"/>
</bean>

Putting it all together, when the sendEmail() method of the emailService bean is called, if there are any emails that should be blacklisted, a custom event of type BlackListEvent is published. The blackListNotifier bean is registered as an ApplicationListener and thus receives the BlackListEvent, at which point it can notify appropriate parties.

Annotation-based Event Listeners

As of Spring 4.2, an event listener can be registered on any public method of a managed bean via the EventListener annotation. The BlackListNotifier can be rewritten as follows:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
public class BlackListNotifier {

    private String notificationAddress;

    public void setNotificationAddress(String notificationAddress) {
        this.notificationAddress = notificationAddress;
    }

    @EventListener
    public void processBlackListEvent(BlackListEvent event) {
        // notify appropriate parties via notificationAddress...
    }

}

If your method should listen to several events or if you want to define it with no parameter at all, the event type(s) can also be specified on the annotation itself: 下面这个例子就是当 Spring 启动或者重启的时候触发

1
2
3
4
@EventListener({ContextStartedEvent.class, ContextRefreshedEvent.class})
public void handleContextStart() {

}

It is also possible to add additional runtime filtering via the condition attribute of the annotation that defines a SpEL expression that should match to actually invoke the method for a particular event.

1
2
3
4
@EventListener(condition = "#blEvent.test == 'foo'")
public void processBlackListEvent(BlackListEvent blEvent) {
    // notify appropriate parties via notificationAddress...
}

If you need to publish an event as the result of processing another, just change the method signature to return the event that should be published, something like:

1
2
3
4
5
@EventListener
public ListUpdateEvent handleBlackListEvent(BlackListEvent event) {
    // notify appropriate parties via notificationAddress and
    // then publish a ListUpdateEvent...
}

This feature is not supported for asynchronous listeners.

Asynchronous Listeners

If you want a particular listener to process events asynchronously, simply reuse the regular @Async support:

1
2
3
4
5
@EventListener
@Async
public void processBlackListEvent(BlackListEvent event) {
    // BlackListEvent is processed in a separate thread
}

Be aware of the following limitations when using asynchronous events:

  1. If the event listener throws an Exception it will not be propagated to the caller, check AsyncUncaughtExceptionHandler for more details.
  2. Such event listener cannot send replies. If you need to send another event as the result of the processing, inject ApplicationEventPublisher to send the event manually.

最重要的限制应该是第一点，就是异常不能再外部被捕获，也就意味着，事件不能回滚重发。

Ordering Listeners

If you need the listener to be invoked before another one, just add the @Order annotation to the method declaration:

1
2
3
4
5
@EventListener
@Order(42)
public void processBlackListEvent(BlackListEvent event) {
    // notify appropriate parties via notificationAddress...
}
Generic Events

You can create the following listener definition to only receive EntityCreatedEvent for a Person:

1
2
3
4
@EventListener
public void onPersonCreated(EntityCreatedEvent<Person> event) {
    ...
}

Due to type erasure, this will only work if the event that is fired resolves the generic parameter(s) on which the event listener filters on (that is something like class PersonCreatedEvent extends EntityCreatedEvent<Person> { …​ }).

In certain circumstances, this may become quite tedious if all events follow the same structure (as it should be the case for the event above). In such a case, you can implement ResolvableTypeProvider to guide the framework beyond what the runtime environment provides:

1
2
3
4
5
6
7
8
9
10
11
12
13
public class EntityCreatedEvent<T>
        extends ApplicationEvent implements ResolvableTypeProvider {

    public EntityCreatedEvent(T entity) {
        super(entity);
    }

    @Override
    public ResolvableType getResolvableType() {
        return ResolvableType.forClassWithGenerics(getClass(),
                ResolvableType.forInstance(getSource()));
    }
}

####【7.15.3】Convenient access to low-level resources

####【7.15.4】Convenient ApplicationContext instantiation for web applications

You can create ApplicationContext instances declaratively by using, for example, a ContextLoader. Of course you can also create ApplicationContext instances programmatically by using one of the ApplicationContext implementations.

You can register an ApplicationContext using the ContextLoaderListener as follows:

1
2
3
4
5
6
7
8
<context-param>
    <param-name>contextConfigLocation</param-name>
    <param-value>/WEB-INF/daoContext.xml /WEB-INF/applicationContext.xml</param-value>
</context-param>

<listener>
    <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
</listener>

The listener inspects the contextConfigLocation parameter. If the parameter does not exist, the listener uses /WEB-INF/applicationContext.xml as a default.

【7.15.5】 Deploying a Spring ApplicationContext as a Java EE RAR file

It is possible to deploy a Spring ApplicationContext as a RAR file, encapsulating the context and all of its required bean classes and library JARs in a Java EE RAR deployment unit.

【7.16】The BeanFactory

The BeanFactory provides the underlying basis for Spring’s IoC functionality but it is only used directly in integration with other third-party frameworks and is now largely historical in nature for most users of Spring. The BeanFactory and related interfaces, such as BeanFactoryAware, InitializingBean, DisposableBean, are still present in Spring for the purposes of backward compatibility with the large number of third-party frameworks that integrate with Spring. Often third-party components that can not use more modern equivalents such as @PostConstruct or @PreDestroy in order to remain compatible with JDK 1.4 or to avoid a dependency on JSR-250.

由于历史的原因BeanFactory同时为 Spring IoC 提供了一些只能被第三方框架所调用的底层基础功能；BeanFactory以及相关接口，比如BeanFactoryAware，InitializaingBean，DisposableBean依然存在于 Spring 中，目的就是为了兼容大量的第三方框架，这些框架大多数不能使用更为先进的@PostConstruct或者@PreDestroy是因为为了兼容 JDK1.4。

This section provides additional background into the differences between the BeanFactory and ApplicationContext and how one might access the IoC container directly through a classic singleton lookup.

7.16.1 BeanFactory or ApplicationContext?

Use an ApplicationContext unless you have a good reason for not doing so.

Because the ApplicationContext includes all functionality of the BeanFactory, it is generally recommended over the BeanFactory, except for a few situations such as in embedded applications running on resource-constrained devices where memory consumption might be critical and a few extra kilobytes might make a difference.

ApplicationContext包含了BeanFactory的所有功能，通常建议直接使用ApplicationContext，除非在一些极端的情况，比如资源有限的嵌入式系统等等

Spring makes heavy use of the BeanPostProcessor extension point (to effect proxying and so on)

Spring 为了使得代理生效等等功能而大量的使用了BeanPostProcessor的扩展点(extension point)特性。

If you use only a plain BeanFactory, a fair amount of support such as transactions and AOP will not take effect, at least not without some extra steps on your part.

如果你只是用原始的BeanFactory，那么一些特性诸如transactions和AOP就不能生效了。

The following table lists features provided by the BeanFactory and ApplicationContext interfaces and implementations.

To explicitly register a bean post-processor with a BeanFactory implementation, you need to write code like this:

1
2
3
4
5
6
7
8
DefaultListableBeanFactory factory = new DefaultListableBeanFactory();
// populate the factory with bean definitions

// now register any needed BeanPostProcessor instances
MyBeanPostProcessor postProcessor = new MyBeanPostProcessor();
factory.addBeanPostProcessor(postProcessor);

// now start using the factory

To explicitly register a BeanFactoryPostProcessor when using a BeanFactory implementation, you must write code like this:

1
2
3
4
5
6
7
8
9
10
DefaultListableBeanFactory factory = new DefaultListableBeanFactory();
XmlBeanDefinitionReader reader = new XmlBeanDefinitionReader(factory);
reader.loadBeanDefinitions(new FileSystemResource("beans.xml"));

// bring in some property values from a Properties file
PropertyPlaceholderConfigurer cfg = new PropertyPlaceholderConfigurer();
cfg.setLocation(new FileSystemResource("jdbc.properties"));

// now actually do the replacement
cfg.postProcessBeanFactory(factory);

【7.16.2】 Glue code and the evil singleton

这个小节介绍了如果是第三方框架通过自己的 DI 实例化一个单例带来的问题，没有深入去读..
